# 304 vs 316L Stainless Steel in Heavy-Duty Heat Exchangers: A Technical Comparison

Last Updated: March 2026

Summary

When selecting materials for heavy-duty heat exchangers, particularly for applications such as EGR coolers and oil coolers, the choice between 304 and 316L stainless steel is a critical one. While both are austenitic stainless steels with excellent corrosion resistance, their performance characteristics differ significantly under the demanding conditions of a diesel engine. The primary distinction lies in the addition of molybdenum to 316L, which provides superior resistance to pitting and crevice corrosion, especially in chloride-rich environments. This article provides a detailed technical comparison of 304 and 316L stainless steel, covering their chemical composition, mechanical properties at elevated temperatures, corrosion resistance, and performance in specific heat exchanger applications. By understanding the nuances of each alloy, engineers and technicians can make informed decisions to ensure the longevity and reliability of heavy-duty diesel engine components.

The Role of Alloying Elements in Stainless Steel

The unique properties of stainless steel are derived from the specific combination of alloying elements added to iron. In the case of 304 and 316L, the primary alloying elements are chromium, nickel, and, in the case of 316L, molybdenum. Each of these elements plays a crucial role in determining the alloy's performance characteristics.

Chromium (Cr)

Chromium is the defining element of stainless steel. When present in sufficient quantities (typically above 10.5%), it reacts with oxygen in the environment to form a thin, stable, and passive layer of chromium oxide on the surface of the steel. This passive layer is what gives stainless steel its characteristic corrosion resistance. It is self-healing, meaning that if it is scratched or damaged, it will quickly reform in the presence of oxygen, continuing to protect the underlying steel from corrosion. Both 304 and 316L contain a high percentage of chromium, which is the foundation of their excellent corrosion resistance.

Nickel (Ni)

Nickel is another key alloying element in austenitic stainless steels like 304 and 316L. Its primary function is to stabilize the austenitic crystal structure at room temperature and below. The austenitic structure is a face-centered cubic (FCC) crystal structure that is non-magnetic and has excellent ductility and toughness. Nickel also enhances the alloy's corrosion resistance, particularly in acidic environments, and improves its high-temperature strength and creep resistance.

Molybdenum (Mo)

Molybdenum is the key differentiator between 304 and 316L stainless steel. The addition of 2-3% molybdenum to 316L significantly enhances its resistance to localized corrosion, particularly pitting and crevice corrosion, in chloride-containing environments. Molybdenum promotes the formation of a more stable and robust passive layer, making it more difficult for chlorides to break it down and initiate corrosion. This makes 316L the preferred choice for applications where exposure to chlorides is a concern, such as in marine environments or in EGR coolers where the exhaust gas condensate can be acidic and contain chlorides.

Carbon (C)

Carbon is present in all steels, and its content has a significant impact on the material's properties. In austenitic stainless steels, a lower carbon content is generally desirable to minimize the risk of sensitization. Sensitization is the formation of chromium carbides at the grain boundaries during welding or high-temperature exposure. This process depletes the surrounding area of chromium, making it susceptible to intergranular corrosion. The "L" in 316L signifies a low carbon content (0.03% maximum), which makes it highly resistant to sensitization and the preferred choice for welded components.

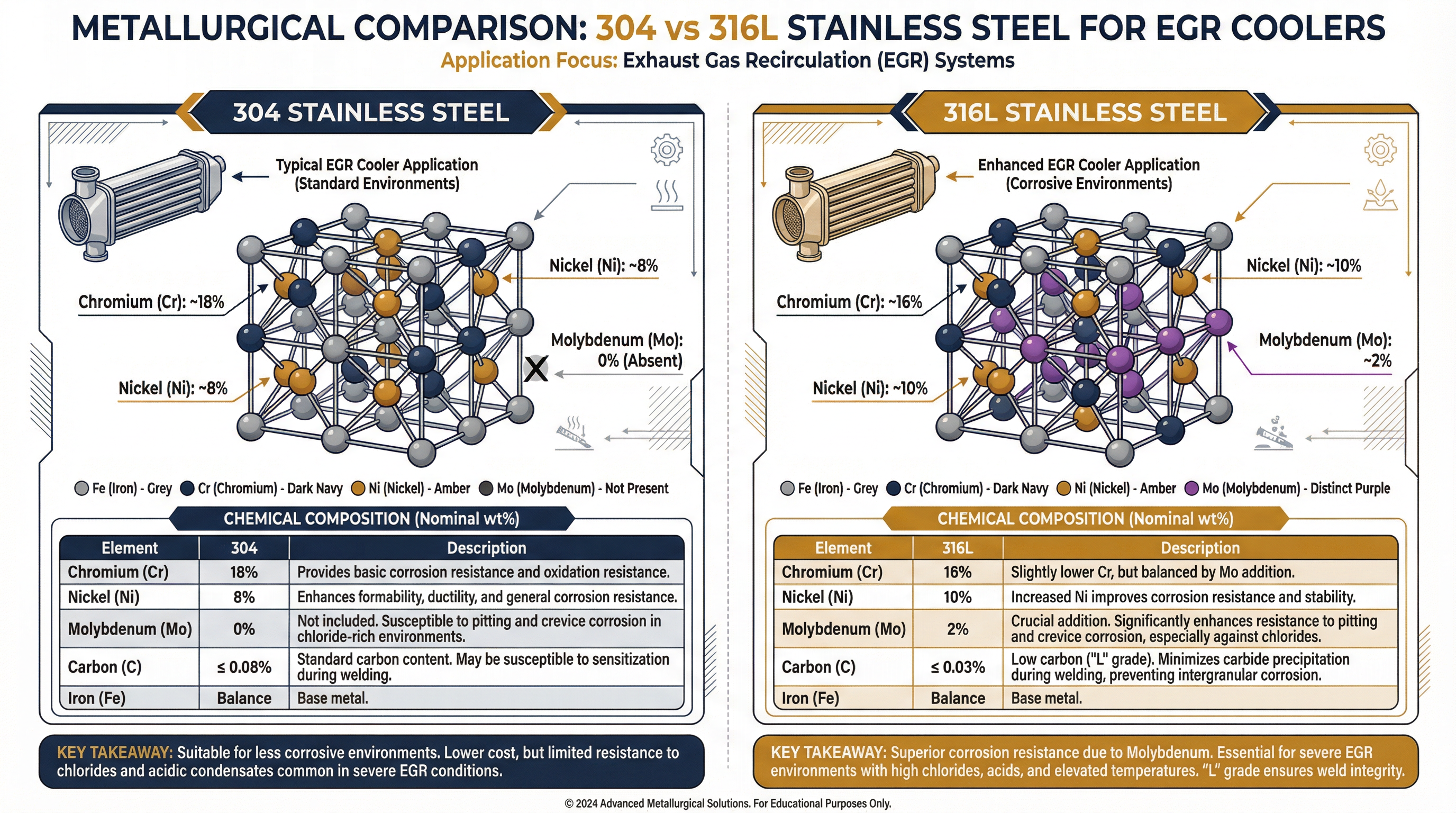

Chemical Composition Comparison

The fundamental differences in the performance of 304 and 316L stainless steel stem from their distinct chemical compositions. Both are iron-based alloys with significant amounts of chromium and nickel, which are responsible for their characteristic corrosion resistance. However, the inclusion of molybdenum in 316L is the key differentiator, providing enhanced protection against specific types of corrosion.

As shown in the table, 316L stainless steel contains 2-3% molybdenum, which is absent in 304. This addition significantly improves its resistance to pitting and crevice corrosion, particularly in environments containing chlorides and other halides. The "L" in 316L signifies a lower carbon content (0.03% max) compared to standard 316, which minimizes the risk of sensitization and subsequent intergranular corrosion after welding.

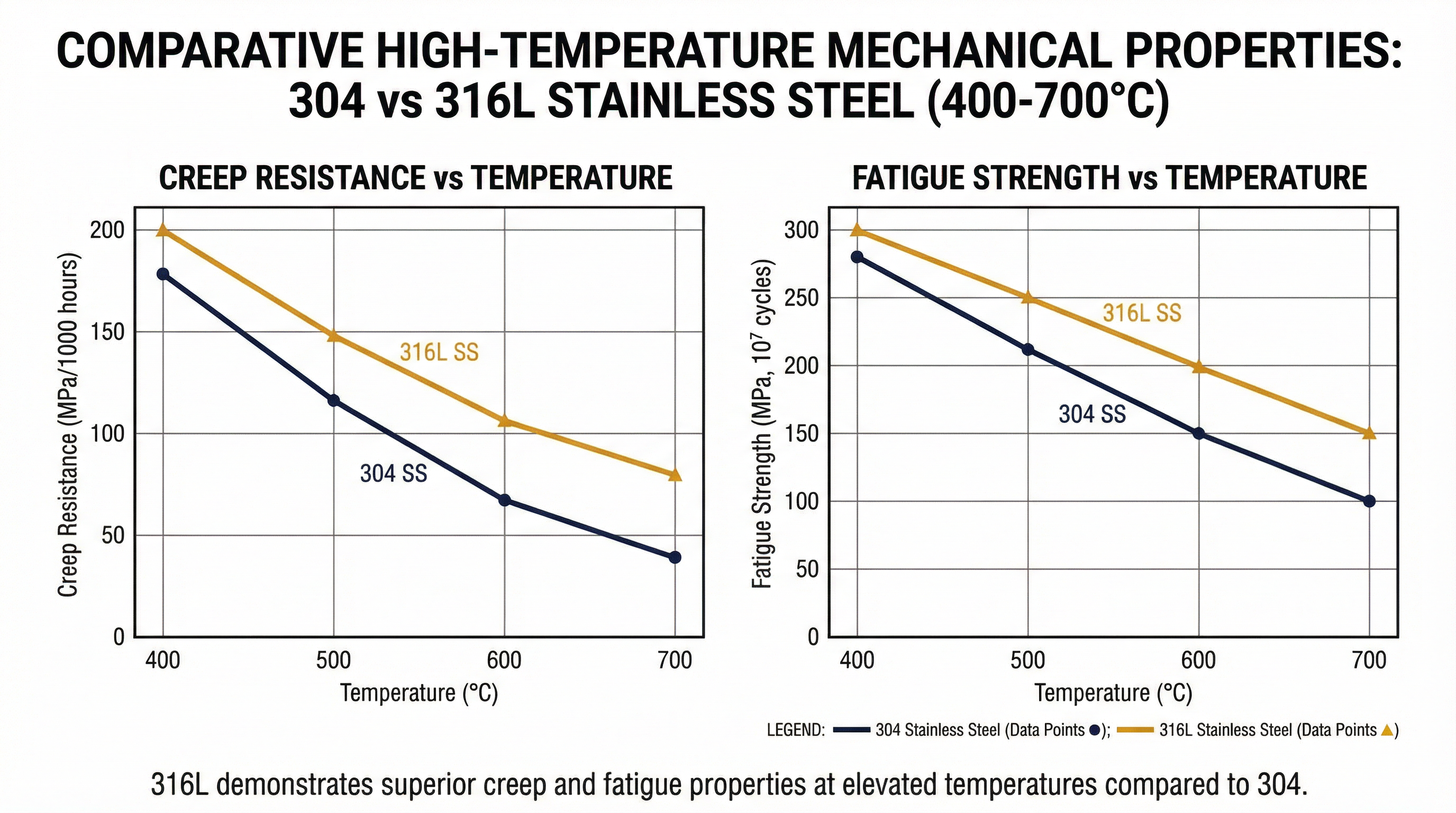

Mechanical Properties at Operating Temperatures

Heavy-duty heat exchangers operate under a wide range of temperatures, and the mechanical properties of the chosen material at these temperatures are crucial for ensuring structural integrity. Both 304 and 316L stainless steel exhibit good high-temperature strength, but there are subtle differences in their performance.

At room temperature, both alloys have similar yield and tensile strengths. However, as the temperature increases, 316L generally maintains a slightly higher yield strength than 304. This can be an important consideration in applications where the heat exchanger is subjected to high mechanical stresses at elevated temperatures. The higher nickel content in 316L also contributes to its superior strength and creep resistance at high temperatures.

Creep Resistance

Creep is the tendency of a solid material to move slowly or deform permanently under the influence of persistent mechanical stresses. It is a time-dependent deformation that occurs at elevated temperatures. In heavy-duty heat exchangers, which operate at high temperatures for extended periods, creep resistance is a critical property. The higher nickel and molybdenum content of 316L gives it superior creep resistance compared to 304. This means that 316L is less likely to deform or fail over time when subjected to high temperatures and stresses, making it a more reliable choice for demanding applications.

Fatigue Strength

Fatigue is the weakening of a material caused by repeatedly applied loads. It is the progressive and localized structural damage that occurs when a material is subjected to cyclic loading. In heavy-duty diesel engines, heat exchangers are subjected to thermal cycling as the engine heats up and cools down, as well as mechanical vibrations. This cyclic loading can lead to fatigue failure if the material does not have adequate fatigue strength. Both 304 and 316L have good fatigue strength, but the superior corrosion resistance of 316L can indirectly improve its fatigue life. This is because corrosion can create stress concentrations on the surface of the material, which can act as initiation sites for fatigue cracks. By resisting corrosion, 316L can help to prevent the formation of these stress concentrations and extend the fatigue life of the component.

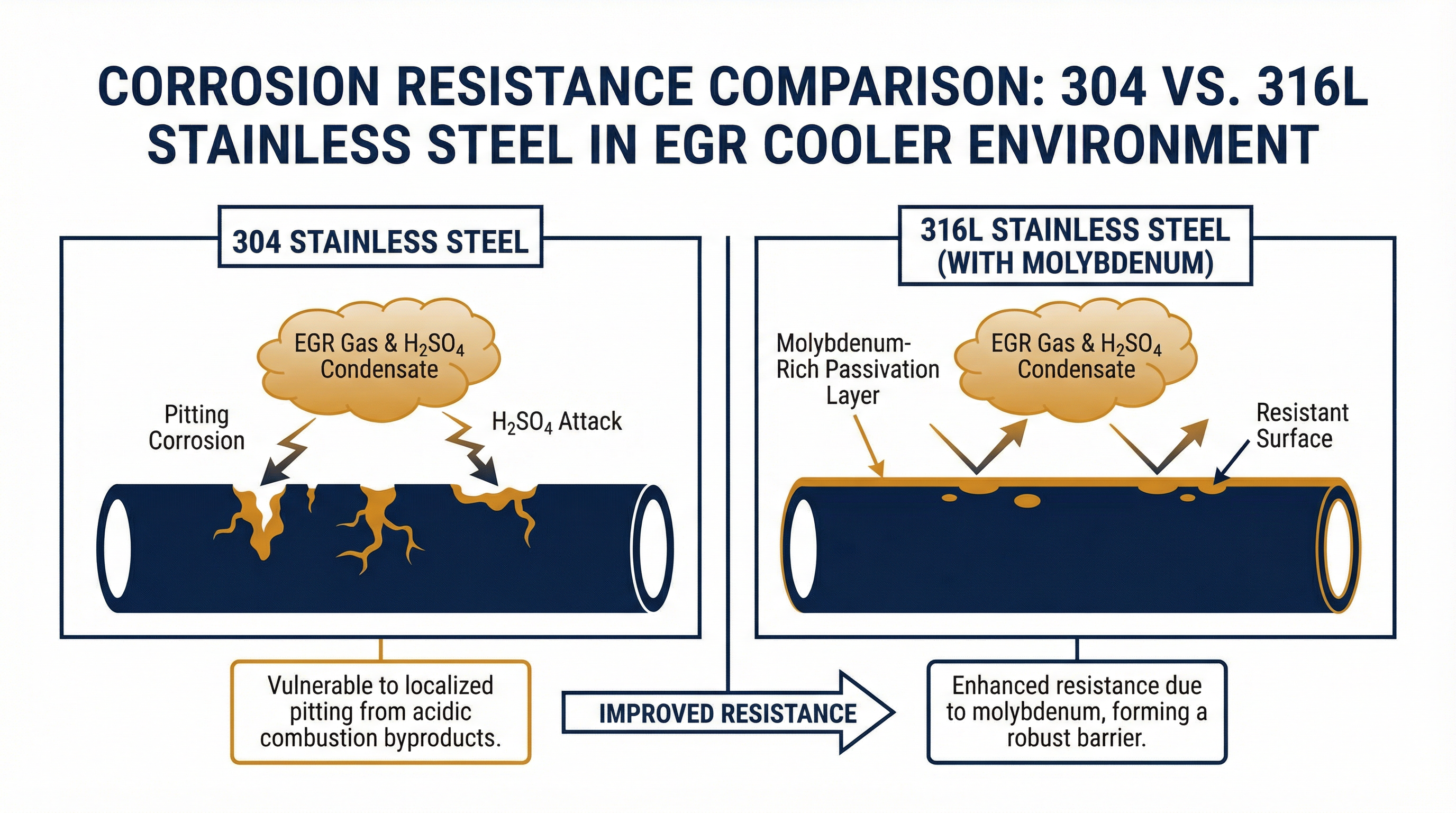

Corrosion Resistance Comparison

The primary reason for selecting 316L over 304 stainless steel in many heat exchanger applications is its superior corrosion resistance. While both alloys offer excellent general corrosion resistance, 316L provides enhanced protection against several specific types of corrosion that are common in diesel engine environments.

* General Corrosion: Both 304 and 316L exhibit excellent resistance to a wide range of atmospheric and chemical environments. For general-purpose applications with low corrosion potential, 304 is often a cost-effective choice.

* Pitting and Crevice Corrosion: This is where 316L truly shines. The addition of molybdenum significantly enhances its resistance to pitting and crevice corrosion, which are localized forms of corrosion that can lead to rapid failure in the presence of chlorides. This is particularly important in EGR coolers, where the exhaust gas condensate can be acidic and contain chlorides.

* Stress Corrosion Cracking (SCC): Both 304 and 316L are susceptible to SCC in certain environments, particularly in the presence of chlorides and high temperatures. However, 316L generally exhibits better resistance to SCC than 304 due to its higher nickel and molybdenum content.

Performance in EGR Cooler Operating Conditions

EGR (Exhaust Gas Recirculation) coolers are a critical component in modern diesel engines, and they operate in a particularly harsh environment. The combination of hot, acidic exhaust gases and engine coolant creates a highly corrosive environment that can quickly degrade inferior materials. In this application, 316L stainless steel is the preferred material due to its superior resistance to pitting and crevice corrosion. The acidic condensate from the exhaust gas, combined with chlorides from the road salt and other sources, can rapidly attack 304 stainless steel, leading to premature failure. The molybdenum in 316L provides the necessary protection to ensure the long-term reliability of the EGR cooler.

Performance in Oil Cooler Operating Conditions

Oil coolers in heavy-duty diesel engines also operate under demanding conditions, but the corrosive environment is generally less severe than in an EGR cooler. While 316L can certainly be used for oil coolers, 304 stainless steel is often a suitable and more cost-effective choice. The oil itself is not typically corrosive, and the main concern is the coolant side of the heat exchanger. If the coolant is properly maintained and does not contain high levels of chlorides, 304 can provide adequate corrosion resistance for the life of the oil cooler.

Weldability and Manufacturing Considerations

Both 304 and 316L stainless steel are readily weldable using common welding techniques. However, the lower carbon content of 316L makes it less susceptible to sensitization during welding. Sensitization is the formation of chromium carbides at the grain boundaries, which can deplete the surrounding area of chromium and reduce its corrosion resistance. To avoid sensitization in 304, it is often necessary to use a low-carbon version (304L) or to perform a post-weld heat treatment. With 316L, the risk of sensitization is significantly reduced, which can simplify the manufacturing process and improve the long-term performance of the welded joints.

Cost Differential and Total Cost of Ownership

Due to the addition of molybdenum and higher nickel content, 316L stainless steel is typically 20-30% more expensive than 304. This initial cost difference can be a significant factor in the material selection process. However, it is important to consider the total cost of ownership, which includes not only the initial material cost but also the costs associated with maintenance, repair, and potential downtime. In applications where the risk of corrosion is high, such as EGR coolers, the higher initial cost of 316L can be easily offset by its longer service life and reduced risk of failure.

When to Specify 304 vs 316L

The decision of whether to use 304 or 316L stainless steel for a heavy-duty heat exchanger depends on a careful evaluation of the specific application and operating conditions. The following decision matrix provides a general guideline for selecting the appropriate material:

ASTM Standards

Several ASTM standards are relevant to the use of stainless steel in heat exchanger tubing:

* ASTM A240: Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications.

* ASTM A312: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes.

* ASTM A269: Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service.

These standards provide detailed requirements for the chemical composition, mechanical properties, and testing of stainless steel materials used in heat exchangers and other critical applications.

Frequently Asked Questions

1. What is the main difference between 304 and 316L stainless steel?

The main difference is the addition of molybdenum to 316L, which provides superior resistance to pitting and crevice corrosion, especially in chloride-rich environments.

2. Why is 316L preferred for EGR coolers?

EGR coolers operate in a harsh environment with hot, acidic exhaust gases and potential for chloride contamination. The molybdenum in 316L provides the necessary corrosion resistance to withstand these conditions.

3. Can I use 304 stainless steel for an oil cooler?

In many cases, yes. If the coolant is well-maintained and the risk of chloride contamination is low, 304 can be a cost-effective choice for oil coolers.

4. Is 316L more difficult to weld than 304?

No, both are readily weldable. However, the lower carbon content of 316L reduces the risk of sensitization, which can simplify the welding process.

5. Is 316L always the better choice?

Not necessarily. For applications with low corrosion potential, 304 can provide adequate performance at a lower cost. The key is to select the material that best meets the specific requirements of the application.

6. What does the "L" in 316L mean?

The "L" stands for "low carbon." 316L has a maximum carbon content of 0.03%, which helps to prevent sensitization during welding.

7. Are there other stainless steel alloys used in heat exchangers?

Yes, there are many other stainless steel alloys, as well as other materials like titanium and nickel alloys, that are used in specialized heat exchanger applications.

References

1. ASTM A240 / A240M-20, Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications, ASTM International, West Conshohocken, PA, 2020.

2. ASTM A312 / A312M-21, Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes, ASTM International, West Conshohocken, PA, 2021.

3. ASTM A269 / A269M-19, Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service, ASTM International, West Conshohocken, PA, 2019.

4. ASM Handbook, Volume 13A, Corrosion: Fundamentals, Testing, and Protection, ASM International, 2003.

5. "Stainless Steels for Design Engineers," J.R. Davis, ed., ASM International, 2008.

Legal Disclaimer

This article is for informational purposes only and should not be considered as professional engineering advice. The information provided is based on general industry knowledge and may not be applicable to all specific situations. Always consult with a qualified engineer or materials specialist before making any decisions regarding material selection or equipment design.

---

SUMEC Stainless Steel Heat Exchangers

All SUMEC EGR coolers use either 304 or 316L stainless steel depending on the application requirements:

• [Cummins ISB 6.7L EGR Cooler](/products/cummins-isb-6-7-egr-cooler-4936026rx) — 304 Stainless Steel construction

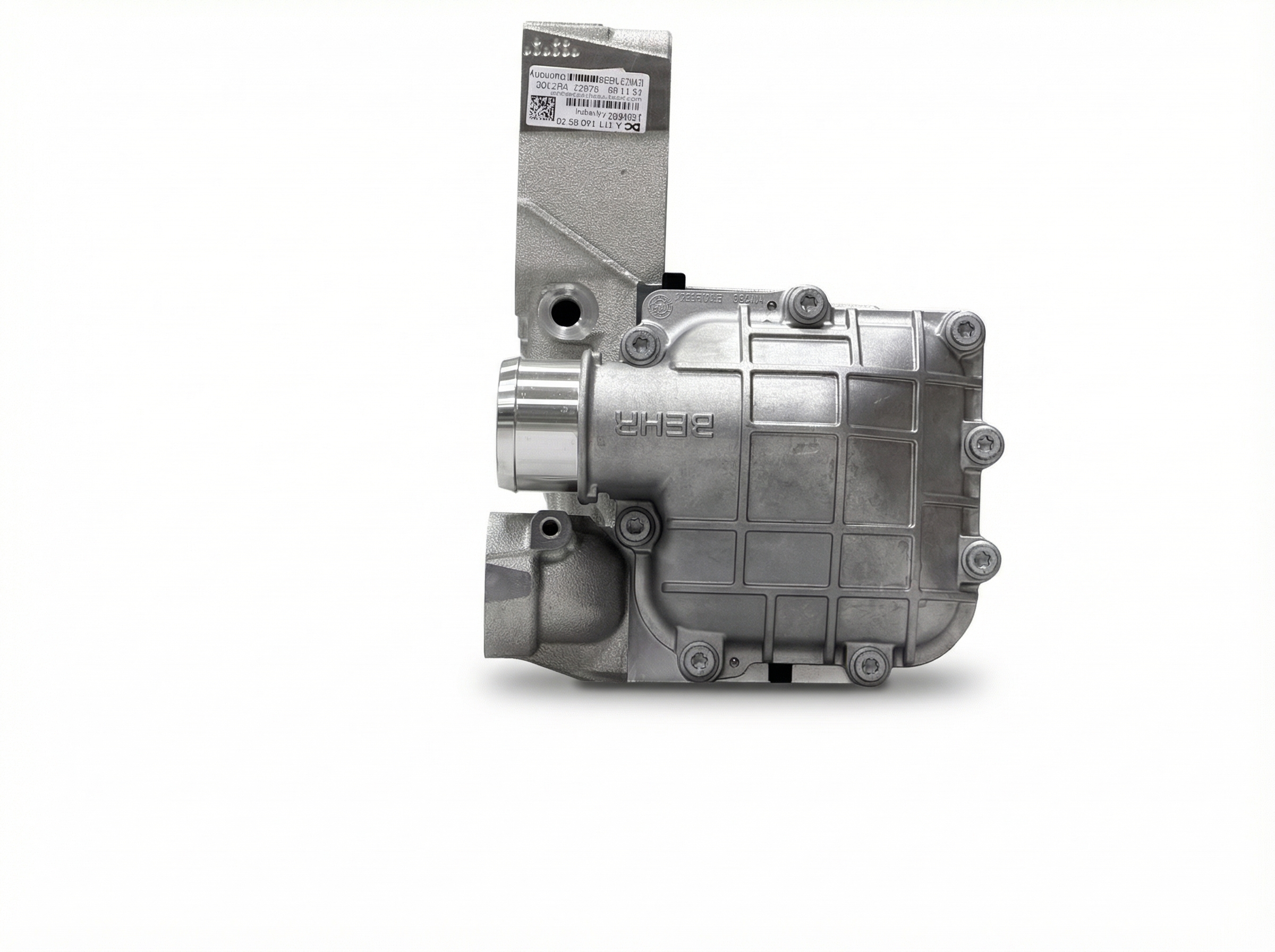

• [Mercedes-Benz Actros EGR Cooler](/products/mercedes-benz-actros-egr-cooler-a4711408875) — 316L Stainless Steel for maximum corrosion resistance
