Cummins KTA38 / KTA50 Aftercooler Replacement Guide: OE Numbers, Failure Diagnosis & Service Tips

Summary

The Cummins KTA38 and KTA50 are among the most widely deployed large-displacement diesel engines in mining, power generation, and marine applications worldwide. With displacement ranging from 38 to 50 liters and power outputs up to 2,000 hp, these engines demand aftercooler cores that can withstand extreme thermal cycling and continuous duty loads. Unlike on-highway EGR coolers that fail from exhaust gas corrosion, industrial aftercooler failures are primarily driven by coolant-side corrosion, vibration fatigue, and mineral scale buildup. This guide covers the three primary failure modes, OE number cross-reference for six SUMEC part numbers across the KTA38 and KTA50 families, and a step-by-step replacement procedure applicable to both engine platforms.

---

What Is an Aftercooler and Why It Matters on Large Industrial Diesels

An aftercooler (also called a charge air cooler or intercooler on some platforms) sits between the turbocharger outlet and the engine intake manifold. Its function is to cool the compressed intake air before it enters the cylinders. On a Cummins KTA50 operating at full load, turbocharger outlet temperatures can exceed 300°F (150°C). The aftercooler reduces this to approximately 120–140°F (49–60°C), which increases air density, improves combustion efficiency, and reduces thermal stress on pistons and cylinder liners.

On the KTA38 and KTA50, the aftercooler is a liquid-cooled unit — engine coolant flows through the core to absorb heat from the compressed charge air. This design is more efficient than air-to-air aftercoolers but introduces a failure mode specific to liquid-cooled systems: internal coolant leaks that allow coolant to enter the intake manifold and ultimately the combustion chambers.

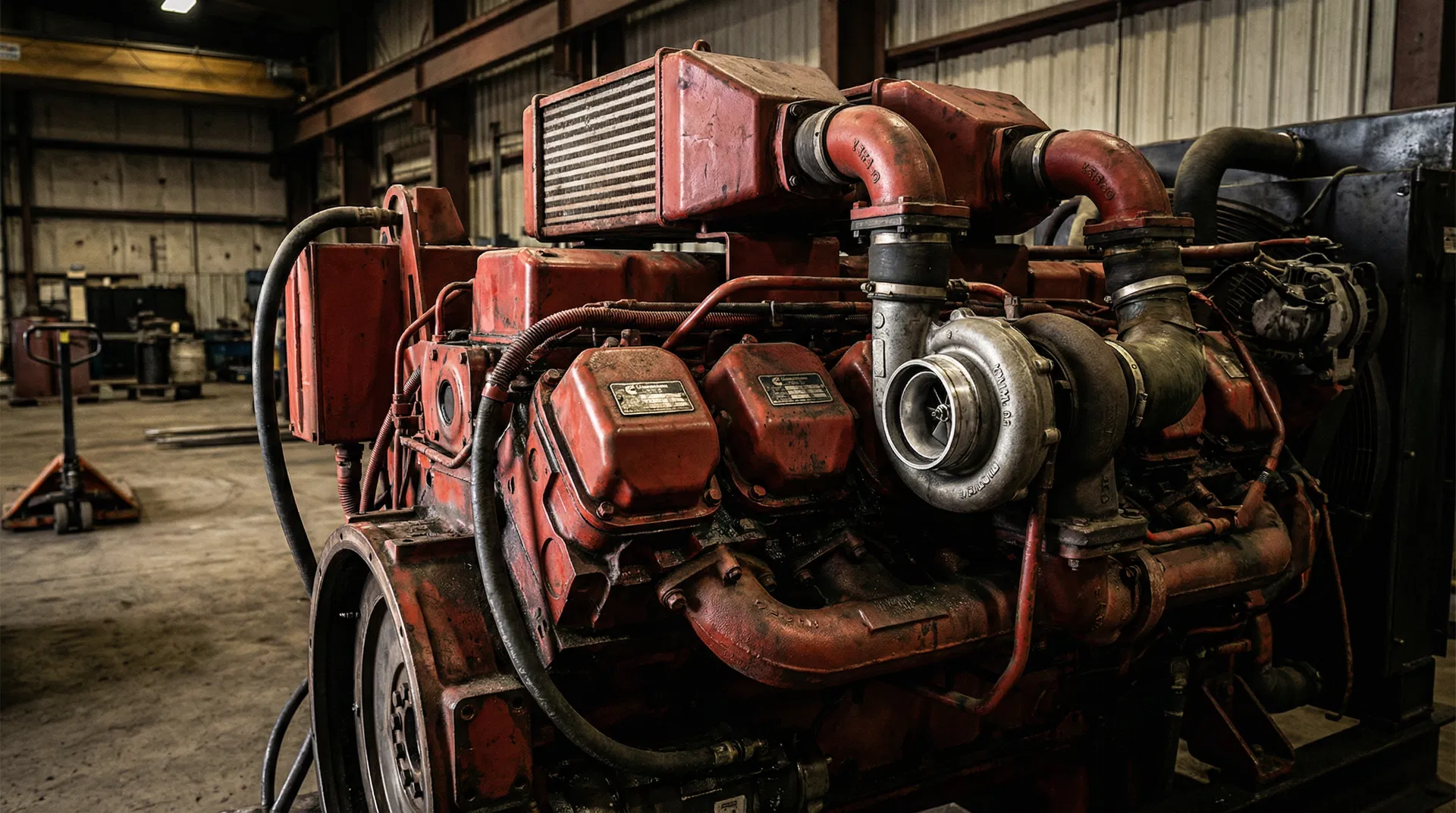

*Figure 1: A Cummins KTA-series engine in a heavy industrial maintenance facility. The aftercooler housing is visible on top of the intake manifold.*

---

Three Primary Failure Modes

1. Coolant-Side Corrosion (Most Common)

The aluminum fins and brass tubes in the aftercooler core are susceptible to electrochemical corrosion when coolant chemistry is not maintained. Cummins specifies a 50/50 mix of fully formulated coolant (FFC) with supplemental coolant additives (SCAs) maintained at the correct concentration. When SCA levels drop below specification — which happens in high-hour industrial applications where coolant change intervals are missed — the inhibitor package depletes and pitting corrosion begins on the brass tube exterior. Over time, pinholes develop that allow coolant to weep into the air side of the core.

2. Vibration Fatigue at Tube-to-Header Joints

On mining and drilling equipment, the engine is subjected to continuous vibration from the work environment. The tube-to-header joints — where individual brass tubes are brazed into the aluminum end tanks — are the highest-stress points in the core. Fatigue cracks typically initiate at the braze fillet and propagate along the tube wall. This failure mode is most common on equipment operating in hard-rock mining or on offshore marine platforms.

3. Mineral Scale Buildup (Gradual Performance Loss)

In regions with high-mineral-content water used for coolant mixing, calcium and magnesium deposits accumulate on the internal tube walls over time. This reduces heat transfer efficiency and restricts coolant flow. Unlike the first two failure modes, scale buildup does not cause a sudden failure — instead, it causes a gradual increase in intake air temperature that manifests as reduced power output and increased fuel consumption before any visible symptoms appear.

---

OE Number Cross-Reference: KTA38 and KTA50 Aftercooler Cores

The following table covers the six SUMEC part numbers that correspond to Cummins KTA38 and KTA50 aftercooler applications. Note that multiple OE numbers exist for the same engine family due to design revisions across production years and application-specific configurations (generator set vs. industrial vs. marine).

Important: Always verify the OE number against the engine data plate before ordering. The data plate is located on the valve cover (KTA38) or on the engine block near the oil filter housing (KTA50). Cummins engine serial numbers encode the build date and specification level, which determines the correct aftercooler part number.

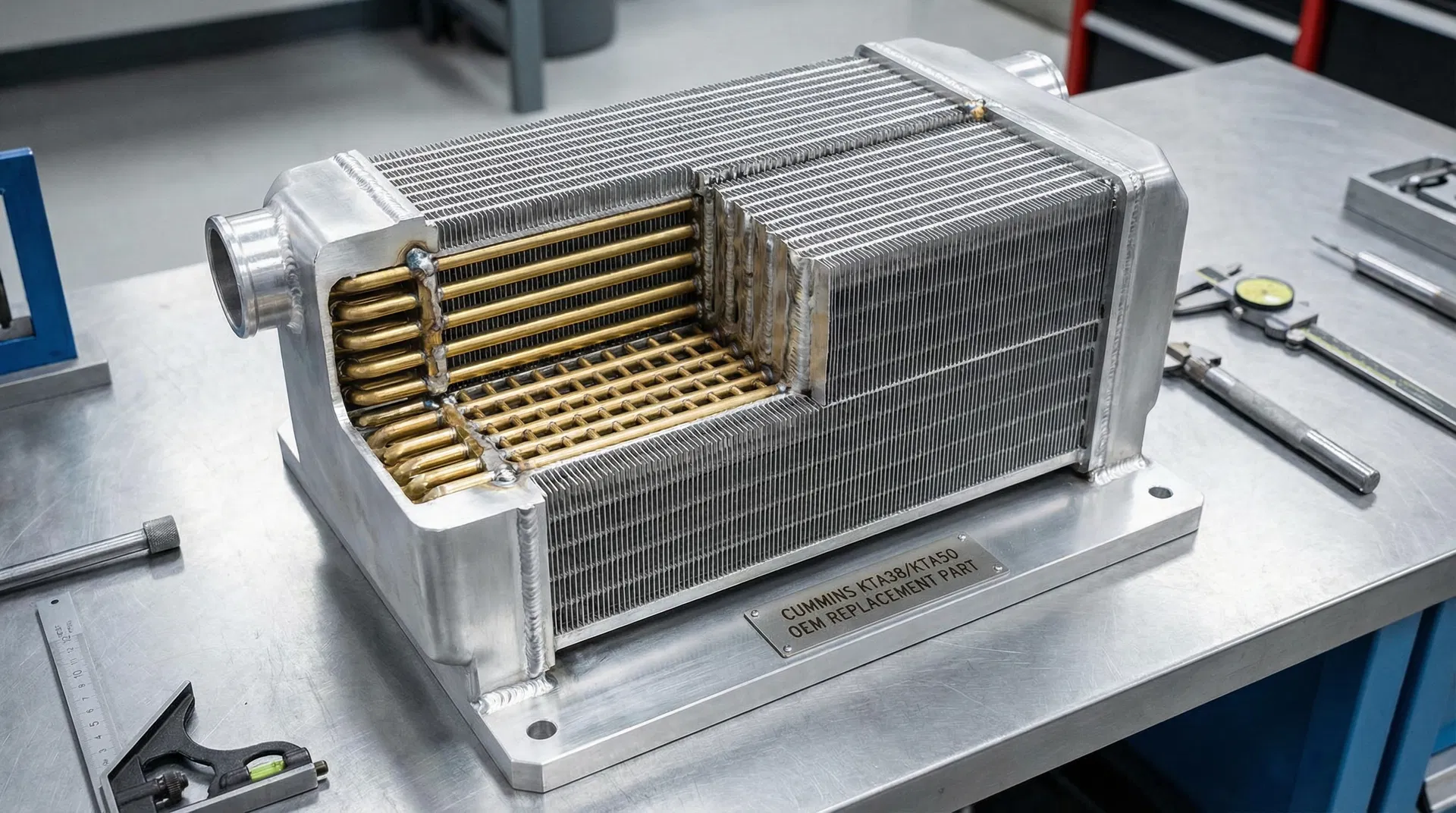

*Figure 2: Cross-section of an OEM-grade aftercooler core showing the aluminum fin matrix and brass tube bundle. All SUMEC KTA38/KTA50 cores use this construction for maximum durability.*

---

Diagnostic Procedure: Confirming Aftercooler Failure

Before ordering a replacement core, confirm the aftercooler is the source of the problem. The following procedure applies to both KTA38 and KTA50 engines.

Step 1 — Check Intake Air Temperature (IAT) Sensor Data

Using a Cummins INSITE diagnostic tool or equivalent, log IAT at the intake manifold under load. If IAT exceeds the engine specification by more than 15°F (8°C) at a given ambient temperature, the aftercooler is underperforming. This indicates either scale buildup or partial core blockage.

Step 2 — Pressure Test the Aftercooler Core

With the engine cold, disconnect the air inlet and outlet hoses from the aftercooler housing. Cap one port and apply 15 psi (103 kPa) of shop air to the other. Submerge the core in water or apply soapy water to the exterior. Bubbles indicate a leak in the air side of the core. This test does not detect coolant-side leaks.

Step 3 — Inspect Coolant for Contamination

Drain a coolant sample from the aftercooler drain cock (if equipped) or from the lower radiator hose. If the coolant appears milky, foamy, or has an oily film on the surface, compressed air is entering the coolant circuit through a failed tube. This is the reverse of the more common failure where coolant enters the air side.

Step 4 — Inspect the Intake Manifold

Remove the intake manifold inspection cover (if equipped) and look for coolant residue, white mineral deposits, or rust staining on the manifold walls. Any coolant presence in the intake manifold confirms an aftercooler core leak and requires immediate replacement.

---

Replacement Procedure Overview

The following steps provide a general procedure for KTA38 and KTA50 aftercooler core replacement. Always consult the Cummins Operation and Maintenance Manual (OMM) for your specific engine serial number before beginning.

Required Tools: Torque wrench (0–150 ft-lb), coolant drain pan (minimum 15 gallons for KTA50), hose clamp pliers, thread sealant (Loctite 567 or equivalent), new O-rings and gaskets (included with SUMEC replacement cores).

1. Drain the cooling system — Open the drain cock on the radiator bottom tank and the engine block drain. On KTA50 engines, the total coolant capacity is approximately 30 gallons; use an appropriate collection system.

2. Remove the air inlet and outlet ducting — Label all hose connections before removal to ensure correct reassembly orientation.

3. Disconnect coolant supply and return lines — These are typically 1.5-inch (38 mm) hose connections on the aftercooler housing end tanks. Have rags ready for residual coolant.

4. Remove the aftercooler housing bolts — The housing is typically secured with 12–16 bolts on KTA38 and 16–20 bolts on KTA50. Note bolt length variations if present.

5. Extract the core — The core slides out of the housing after the housing is removed. On KTA50, the core weighs approximately 45–55 lbs (20–25 kg); use a second technician or lifting assist.

6. Clean the housing — Remove all gasket material and inspect the housing for cracks or corrosion. Replace the housing if pitting depth exceeds 0.030 inches (0.76 mm).

7. Install the new core — Apply a light coat of clean engine oil to all new O-rings before installation. Do not use silicone grease, which can contaminate the coolant system.

8. Torque the housing bolts — Follow the Cummins torque sequence (typically a star pattern) and torque to specification. Over-torquing the housing bolts is the most common cause of premature aftercooler housing gasket failure.

9. Refill and bleed the cooling system — Use a 50/50 premix of Cummins-approved fully formulated coolant. Bleed air from the system using the bleed valve on the thermostat housing.

10. Run the engine and verify — After reaching operating temperature, check for coolant leaks at all connections and verify IAT is within specification using the diagnostic tool.

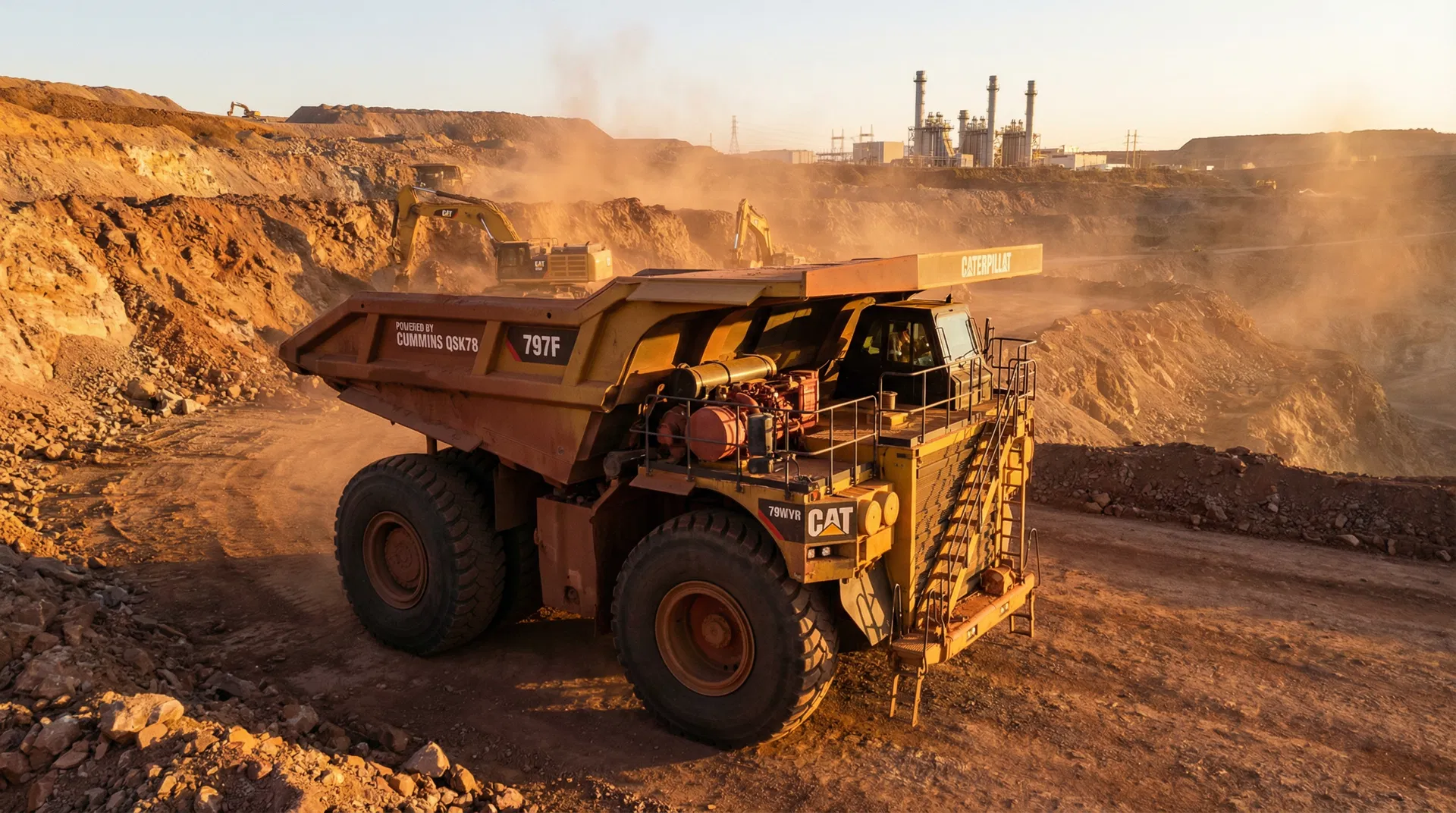

*Figure 3: Heavy mining equipment powered by Cummins KTA/QSK series engines. Aftercooler reliability is critical in these continuous-duty applications where downtime costs can exceed $50,000 per day.*

---

Coolant Maintenance: Preventing Premature Aftercooler Failure

Because coolant-side corrosion is the leading cause of aftercooler failure on KTA38 and KTA50 engines, a proactive coolant maintenance program is the most cost-effective way to extend aftercooler life.

Cummins recommends testing coolant chemistry every 250 operating hours using test strips or a refractometer. The key parameters to monitor are: freeze point (target: –34°F / –37°C), SCA concentration (target: 0.8–1.2 units/gallon), and pH (target: 8.5–10.5). If SCA concentration falls below 0.6 units/gallon, add SCA extender immediately — do not wait for the next scheduled service.

For engines operating in high-mineral-content water regions, consider using pre-mixed coolant rather than mixing with local water. The cost difference is negligible compared to the cost of a premature aftercooler replacement.

---
