# Detroit Diesel DD15 / DD16 EGR Cooler Replacement Guide (A4721400475 & A4731400575)

Last Updated: March 2026

---

Summary

The Detroit Diesel DD15 and DD16 are the dominant heavy-duty diesel engines in North American Class 8 trucks, found in the Freightliner Cascadia, Peterbilt 579, Kenworth T680, and Western Star 5700. Both engines use a two-stage EGR Cooler system, and EGR Cooler failure is one of the most common and costly maintenance events on the DD15 platform — with OEM replacement costs ranging from $800 to $1,400 per unit. This guide covers the two primary EGR Cooler part numbers (A4721400475 for 2010–2014 engines and A4731400575 for 2015+ engines), how to diagnose failure, and the complete replacement procedure.

---

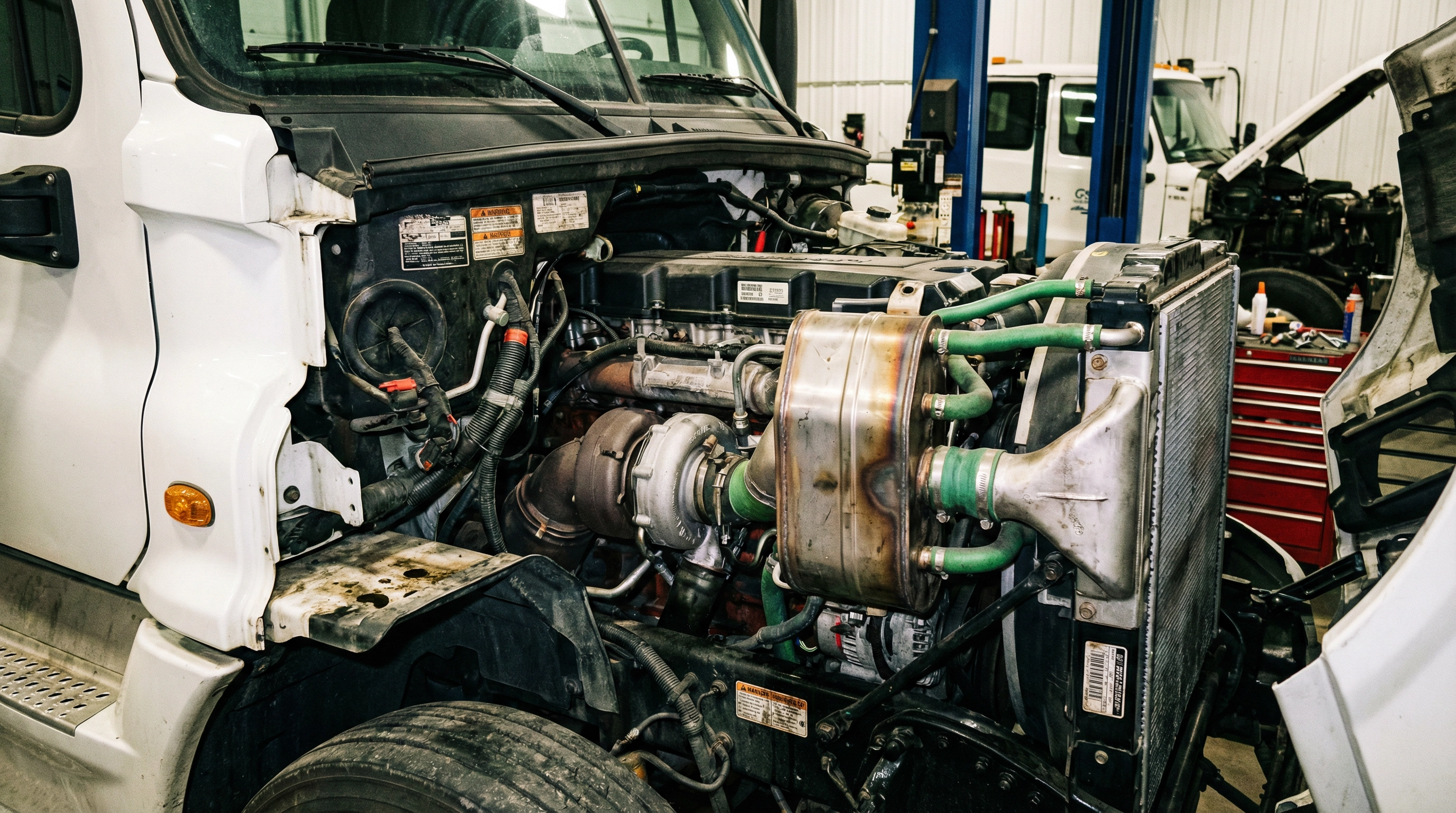

*Detroit Diesel DD15 engine in a Freightliner Cascadia — the EGR cooler assembly with characteristic green coolant hoses is visible on the right side of the engine block.*

---

OE Part Number Guide

Detroit Diesel revised the EGR Cooler design in 2015 to address early failure issues. The two variants are not interchangeable:

Cross-Reference Numbers:

---

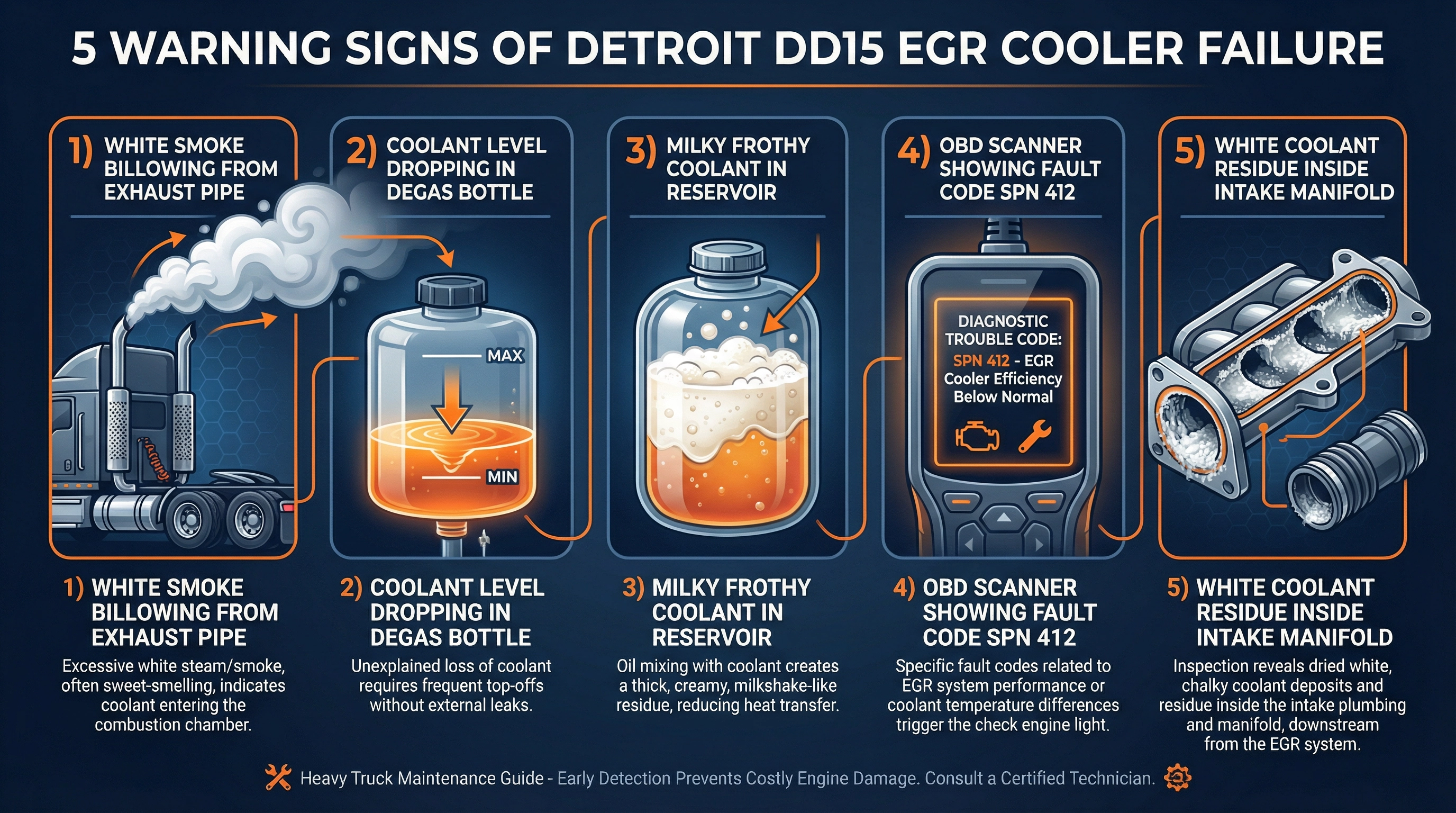

*Five key warning signs of DD15 EGR Cooler failure — early detection prevents catastrophic engine damage from hydrolock.*

---

Common Failure Symptoms

The DD15 EGR Cooler has a well-documented failure pattern. The most common failure mode is internal coolant leak caused by thermal fatigue in the tube bundle:

Primary Symptoms:

• White smoke from exhaust (especially at startup and under load)
• Coolant level dropping 0.5–1 quart per week with no external leaks
• Milky or frothy coolant in the degas bottle
• DTC codes: SPN 412 FMI 0/1 (EGR Temperature), SPN 1569 FMI 31 (Engine Derate)
• Coolant contamination in the intake manifold (visible as white residue)

Secondary Symptoms:

• Reduced fuel economy (2–5% decrease as EGR efficiency drops)
• Increased exhaust temperatures
• Intermittent check engine light

Critical Warning: If coolant enters the combustion chamber in large quantities, it can cause hydrolock — catastrophic engine damage. Do not delay EGR Cooler replacement once internal leakage is confirmed.

---

Diagnosis Procedure

1. Read fault codes with Detroit Diesel DiagnosticLink (DDDL) or compatible scanner. SPN 412 and SPN 1569 are the primary EGR-related codes.

2. Check the degas bottle — milky or foamy coolant is a definitive sign of EGR Cooler failure.

3. Inspect the intake manifold — remove the intake air duct and look for white coolant residue on the manifold walls.

4. Pressure test — pressurize the cooling system to 15 PSI. A drop over 10 minutes indicates a leak.

5. EGR Cooler bypass test — some technicians temporarily bypass the EGR Cooler to confirm it is the source of coolant loss before ordering parts.

---

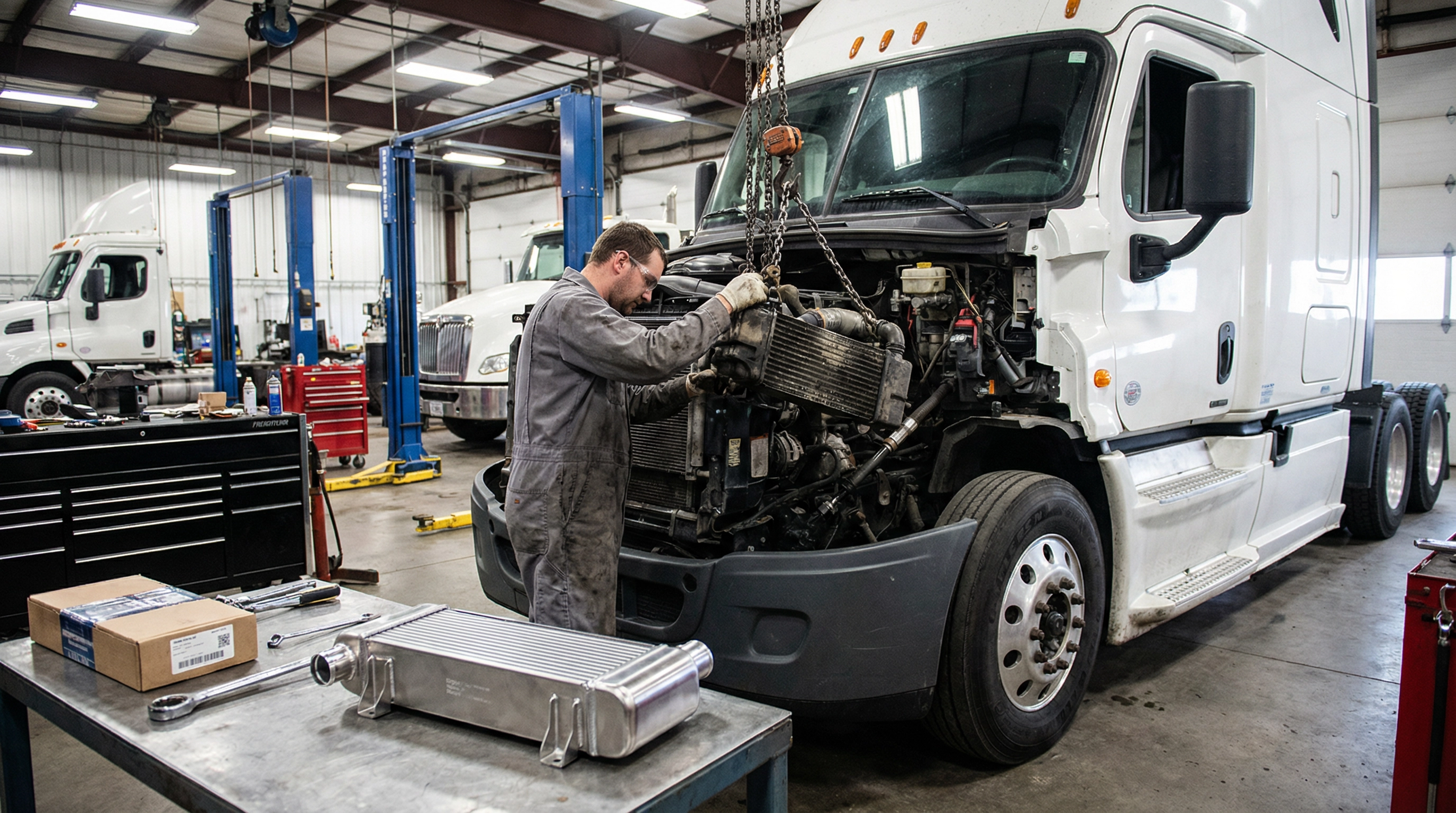

*EGR cooler replacement in progress on a Freightliner Cascadia — the new stainless steel replacement unit is staged on the workbench ready for installation.*

---

Replacement Procedure

Tools Required: 10mm, 13mm, 15mm, 18mm sockets; torque wrench; coolant drain pan; Detroit Diesel service manual (DDC-SVC-MAN-0190)

Estimated Time: 4–6 hours (first time); 2–3 hours (experienced technician)

Step 1: Prepare the Engine

• Allow engine to cool completely (minimum 3 hours)
• Disconnect the negative battery cable
• Drain the cooling system — open the petcock at the radiator bottom

Step 2: Remove the Charge Air Cooler Outlet Pipe

• Loosen the 2× T-bolt clamps on the CAC outlet pipe
• Remove the pipe and set aside

Step 3: Disconnect the EGR System

• Disconnect the EGR cooler coolant inlet hose (upper, 15mm hose clamp)
• Disconnect the EGR cooler coolant outlet hose (lower, 15mm hose clamp)
• Remove the EGR gas inlet pipe from the turbocharger outlet (3× M10 bolts, 25 Nm)
• Remove the EGR gas outlet pipe from the intake mixer (2× M10 bolts, 25 Nm)
• Disconnect the EGR valve electrical connector

Step 4: Remove the EGR Cooler Assembly

• Remove the 6× M10 mounting bolts (35 Nm) securing the EGR Cooler to the engine block bracket
• Lift the assembly straight up — it weighs approximately 12 kg
• Inspect the mounting bracket for cracks or corrosion

Step 5: Inspect and Clean

• Clean all gasket mating surfaces with a plastic scraper (do not use metal tools on aluminum surfaces)
• Inspect the EGR valve — if carbon buildup exceeds 3mm, clean or replace the valve
• Replace all EGR system gaskets (do not reuse)

Step 6: Install the New EGR Cooler

• Position the new cooler on the mounting bracket
• Hand-tighten all 6× M10 mounting bolts, then torque to 35 Nm in a star pattern
• Reconnect EGR gas pipes with new gaskets: 25 Nm for M10 bolts
• Reconnect coolant hoses and secure clamps to 4 Nm

Step 7: Refill and Bleed Cooling System

• Refill with Detroit Diesel-approved coolant (Fleetguard ES Compleat or equivalent)
• Bleed the system through the degas bottle bleed valve
• Run engine to 185°F and check for leaks at all connections
• Top up coolant to the MAX mark on the degas bottle

Step 8: Clear Codes and Verify

• Reconnect the battery
• Clear all DTCs with DDDL or OBD-II scanner
• Perform a 30-minute test drive including highway speed operation
• Recheck coolant level after the test drive

---

Maintenance Interval Recommendations

Based on field data from North American fleets:

• Preventive replacement: Every 500,000 miles on high-mileage DD15 trucks
• Reactive replacement: At first sign of coolant loss or white smoke
• Coolant flush: Every 300,000 miles or 3 years — old coolant accelerates tube bundle corrosion
• EGR valve inspection: Every 150,000 miles — clean or replace as needed

---
