EGR Cooler Failure Symptoms: A Diagnostic Guide by Engine Platform
Summary
EGR cooler failure is one of the most common and costly issues in heavy-duty diesel engines, yet it is frequently misdiagnosed as a head gasket failure — leading to unnecessary engine teardowns that can cost $3,000–$8,000 in labor alone. The three universal symptoms of EGR cooler failure are: (1) coolant loss without visible external leaks, (2) white exhaust smoke with a sweet antifreeze odor, and (3) unexplained pressurization of the cooling system. However, the root cause and failure progression differ significantly by engine platform. On the Ford 6.0L Powerstroke, a clogged oil cooler starves the EGR cooler of coolant flow, triggering a cascading thermal failure. On the Navistar MaxxForce 13, extreme thermal cycling at the tube-to-header joints causes progressive cracking. On the Cummins ISX15, soot fouling on the exhaust side creates hot spots that accelerate coolant-side corrosion. On the Cummins ISB 6.7L, stop-and-go duty cycles produce premature thermal fatigue at lower mileage thresholds. This guide provides platform-specific diagnostic procedures, symptom severity tables, and a replacement decision framework to help technicians and fleet managers identify EGR cooler failures accurately and avoid costly misdiagnosis.
---
Universal Symptoms: What All EGR Cooler Failures Have in Common
Before diving into platform-specific details, it is worth establishing the baseline symptoms that appear across virtually all heavy-duty diesel engines when an EGR cooler develops an internal leak.
Coolant loss without visible external leaks is the most common early indicator. Because the leak occurs inside the cooler — where coolant passages and exhaust gas passages share a thin metal wall — the coolant does not drip onto the ground. Instead, it enters the exhaust stream and exits as white vapor from the tailpipe.
White smoke from the exhaust with a sweet, antifreeze-like odor is the second hallmark symptom. This occurs because coolant is being vaporized by hot exhaust gases inside the EGR cooler and carried downstream through the turbocharger and exhaust system. The smoke is typically most visible during cold starts and under load.
Pressurization of the cooling system is a less obvious but highly diagnostic symptom. When exhaust gases leak through a cracked EGR cooler tube into the coolant passage, they pressurize the cooling system beyond its normal operating range. This can cause the degas bottle (coolant overflow reservoir) to overflow or release coolant past its pressure cap.
|---|---|---|
| Symptom | Severity | Also Caused By |
|---|
| Coolant loss, no visible leak | Early warning | Head gasket, heater core, turbo coolant lines |
|---|
| White exhaust smoke with sweet smell | Moderate | Head gasket, cracked cylinder head |
|---|
| Degas bottle overflow / pressurization | Moderate | Head gasket, air in cooling system |
|---|
| Engine overheating | Severe | Thermostat, water pump, radiator restriction |
|---|
| Rough idle / misfire | Severe | Injectors, glow plugs, head gasket |
|---|
| Hydrolock (coolant in cylinders) | Critical | Head gasket, cracked head |
|---|
---

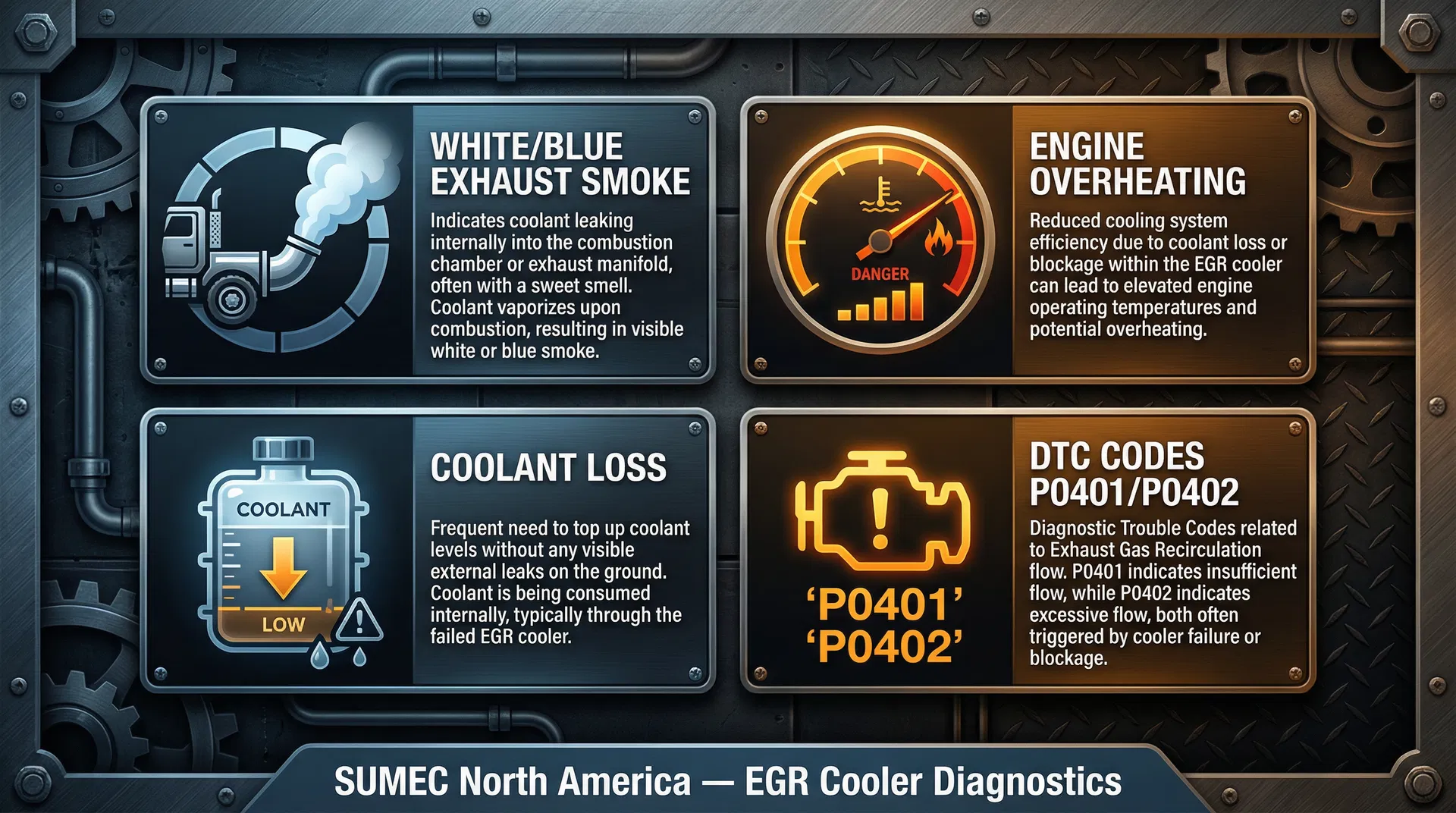

*Figure 1: The four primary warning signs of EGR cooler failure in heavy-duty diesel trucks.*
Platform-Specific Diagnostic Guide
Ford 6.0L Powerstroke (2003-2007)
The Ford 6.0L Powerstroke is arguably the most well-documented case of chronic EGR cooler failure in the heavy-duty diesel world. The root cause is a cascading failure chain that begins not with the EGR cooler itself, but with the engine oil cooler.
The Oil Cooler to EGR Cooler Failure Chain. The 6.0L Powerstroke uses a stacked-plate oil cooler that is prone to internal clogging from silicone deposits and degraded coolant additives. As the oil cooler's internal passages become restricted, coolant flow through the entire cooling circuit is reduced — including flow to the EGR cooler. Starved of adequate coolant, the EGR cooler overheats, its internal tubes crack, and coolant begins leaking into the exhaust gas path.
Ford's own Technical Service Bulletin (TSB 06-15-2) acknowledged the oil cooler restriction issue and recommended replacement of the oil cooler whenever the EGR cooler is replaced. This cascading failure pattern has been independently confirmed by multiple fleet maintenance studies and is considered the primary failure mode for the 6.0L platform.
Platform-Specific Symptoms:
The 6.0L exhibits all universal symptoms plus several unique indicators. The most reliable early warning is a coolant temperature delta between the oil cooler inlet and outlet that exceeds 15°F, measurable with a scan tool monitoring PIDs. A healthy oil cooler should show less than a 10°F differential.
The Degas Bottle Bubble Test is the definitive field diagnostic for distinguishing EGR cooler failure from head gasket failure on the 6.0L:
1. Connect a clear plastic hose to the top of the degas bottle and seal it airtight.
2. Run the other end of the hose into a water bottle that is half-filled with water, submerging the hose end.
3. Start the engine and observe for a steady stream of air bubbles.
4. If the bubbles disappear when the VGT (Variable Geometry Turbocharger) actuator is unplugged, the leak is in the EGR cooler.
5. If the bubbles continue unchanged, the leak is from a head gasket.
Visual confirmation can be obtained by removing the EGR valve and inspecting the intake manifold. Any moisture visible inside the manifold confirms coolant is passing through the EGR cooler.
Important Note on Part Variants: The 6.0L Powerstroke uses two different EGR cooler designs based on build date. Vehicles built before September 22, 2003 use a round-style cooler, while those built after that date use a square-style cooler. The build date is stamped on the driver's side door jamb and must be verified before ordering a replacement. This distinction is documented in Ford's parts catalog and is critical for correct part identification.
|---|---|---|---|
| Diagnostic Parameter | Healthy | Suspect | Failed |
|---|
| Oil cooler temp delta (inlet vs outlet) | < 10°F | 10-15°F | > 15°F |
|---|
| Degas bottle pressure (cold start) | Normal | Slightly elevated | Cap blows off |
|---|
| Coolant loss rate | None | < 1 qt/week | > 1 qt/week |
|---|
| White smoke at idle | None | Intermittent | Constant |
|---|
---
Navistar MaxxForce 13 / International (2010-2014)
The Navistar MaxxForce engine family — particularly the MaxxForce 13 used in International ProStar and LoneStar trucks — became notorious for EGR-related reliability issues that contributed to Navistar's eventual shift to SCR (Selective Catalytic Reduction) technology.
Root Cause: Thermal Stress Cycling. Unlike the Ford 6.0L where a clogged oil cooler triggers the failure, MaxxForce EGR cooler failures are primarily driven by thermal fatigue. Each engine start-stop cycle subjects the cooler to extreme temperature swings. Over thousands of cycles, the internal tube-to-header joints develop micro-cracks that propagate into full leaks. SAE Technical Paper 2012-01-1947 documents this thermal fatigue mechanism in detail, noting that the tube-to-header brazed joints are the most vulnerable point in shell-and-tube EGR cooler designs.
Compounding Factor: Turbo Air Control Valve. The MaxxForce engine's turbo air control valve connects directly to the ECM and regulates exhaust flow through the EGR system. When this valve malfunctions — a common occurrence — it can cause excessive exhaust gas flow through the EGR cooler, accelerating thermal fatigue.
Platform-Specific Symptoms:
MaxxForce EGR cooler failures typically present with coolant loss rates of approximately 1/3 gallon per 8-10 hours of operation in moderate cases. The failure progression is often faster than on the Ford 6.0L because the MaxxForce operates at higher EGR flow rates to meet emissions standards without SCR.
A secondary risk unique to the MaxxForce platform is that prolonged EGR cooler leakage can lead to cracked cylinder heads from excessive heat and thermal shock, escalating a cooler replacement into a major engine overhaul.
Diagnostic Approach:
The primary diagnostic method for MaxxForce EGR coolers is a cooling system pressure test combined with exhaust gas analysis. Apply 15 PSI to the cooling system with the engine off and monitor for pressure decay over 30 minutes. If pressure drops with no visible external leaks, the EGR cooler is the primary suspect. Confirm by checking for coolant contamination in the exhaust using a combustion leak detector (block test fluid).
---
Cummins ISX15 / ISX12 (2010-2017)
Cummins ISX engines use a robust tube-and-shell EGR cooler design that is generally more durable than the Ford or MaxxForce units. However, failures still occur, particularly on high-mileage units exceeding 500,000 miles.
Root Cause: Soot Fouling and Coolant Degradation. The primary failure mode on Cummins ISX EGR coolers is not thermal cracking but rather soot fouling of the exhaust-side passages combined with coolant-side corrosion from inadequate maintenance. As soot accumulates inside the cooler, it insulates the tubes and creates hot spots that accelerate corrosion on the coolant side. Cummins Service Bulletin SB-228-011 addresses coolant maintenance requirements specifically to mitigate this failure mode.
Platform-Specific Symptoms:
Cummins ISX EGR cooler failures tend to develop more gradually than on other platforms. The first sign is often a slow coolant loss — as little as a quart per week — that is easy to dismiss as normal consumption. By the time white smoke becomes visible, the leak has typically progressed to a significant crack.
A unique diagnostic indicator on the ISX is elevated exhaust backpressure readings on the ECM. As the EGR cooler fouls internally, exhaust flow restriction increases, which the ECM compensates for by adjusting VGT position. Monitoring the delta between commanded and actual VGT position can reveal EGR cooler fouling before a leak develops.
Three-Step Diagnostic Protocol for Cummins ISX:
1. Visual Inspection: Check for coolant staining around EGR cooler connections, turbo inlet, and exhaust manifold joints. Look for white crystalline deposits (dried coolant residue).
2. Pressure Test: Apply 15 PSI to the cooling system. On the ISX, a healthy system should hold pressure for at least 30 minutes with less than 1 PSI drop.
3. Exhaust Smoke Analysis: Use an opacity meter or visual inspection during a loaded acceleration test. White smoke that increases under load (not just at cold start) indicates an active EGR cooler leak.
---
Cummins ISB 6.7L (2007-2012)
The Cummins ISB 6.7L, used in Dodge Ram 2500/3500 and Freightliner Sprinter applications, shares the same fundamental EGR cooler design philosophy as the larger ISX but in a smaller package. The failure modes are similar but with some notable differences.
Root Cause: Thermal Cycling in Stop-and-Go Applications. The ISB 6.7L is frequently used in medium-duty applications (delivery trucks, school buses, pickup trucks) that involve significantly more start-stop cycles than the long-haul ISX. This increased thermal cycling accelerates tube fatigue, making EGR cooler failures more common at lower mileage thresholds — sometimes as early as 150,000 miles.
Platform-Specific Diagnostic Note:
The ISB 6.7L's EGR cooler is more accessible than on the ISX, making visual inspection easier. The cooler is located on the driver's side of the engine, and coolant weeping from the exhaust-side connections is often visible without removing any components. A flashlight inspection of the EGR cooler-to-exhaust manifold joint should be part of every routine service on high-mileage ISB 6.7L engines.
---
Prevention: Extending EGR Cooler Life

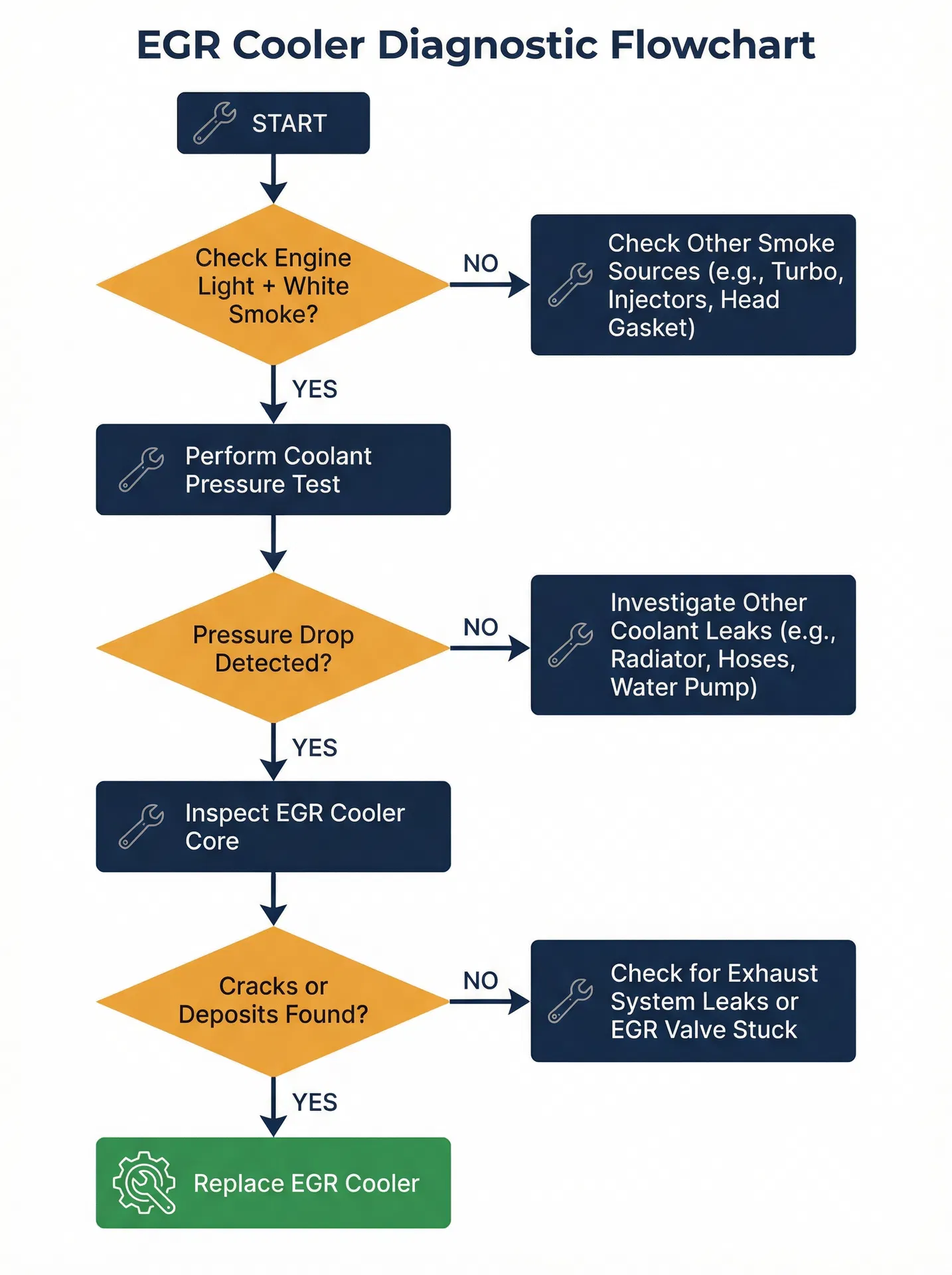

*Figure 2: Step-by-step diagnostic flowchart for identifying EGR cooler failure.*
While EGR cooler failure is often treated as an inevitability, proper maintenance can significantly extend cooler life across all platforms.
Coolant maintenance is the single most impactful preventive measure. Degraded coolant with depleted supplemental coolant additives (SCAs) accelerates internal corrosion. For heavy-duty applications, coolant should be tested regularly using a refractometer and test strips for SCA levels. Both ASTM D6210 (Standard Specification for Fully-Formed Engine Coolant) and TMC RP 302 (Recommended Practice for Coolant Maintenance) provide industry-standard testing protocols.
Oil cooler health directly impacts EGR cooler longevity, particularly on the Ford 6.0L. Monitoring oil cooler temperature differentials and replacing the oil cooler proactively can prevent the cascading failure that destroys EGR coolers.
EGR system cleaning at regular intervals removes soot buildup before it creates the hot spots that lead to tube failure. This is especially important on Cummins ISX engines where soot fouling is the primary failure mode.
**Note:** Maintenance intervals vary significantly by engine platform, operating conditions, and coolant type (conventional vs. Extended Life Coolant). Always refer to the OEM service manual for your specific engine and application before establishing a maintenance schedule.
---
When to Replace: Decision Framework

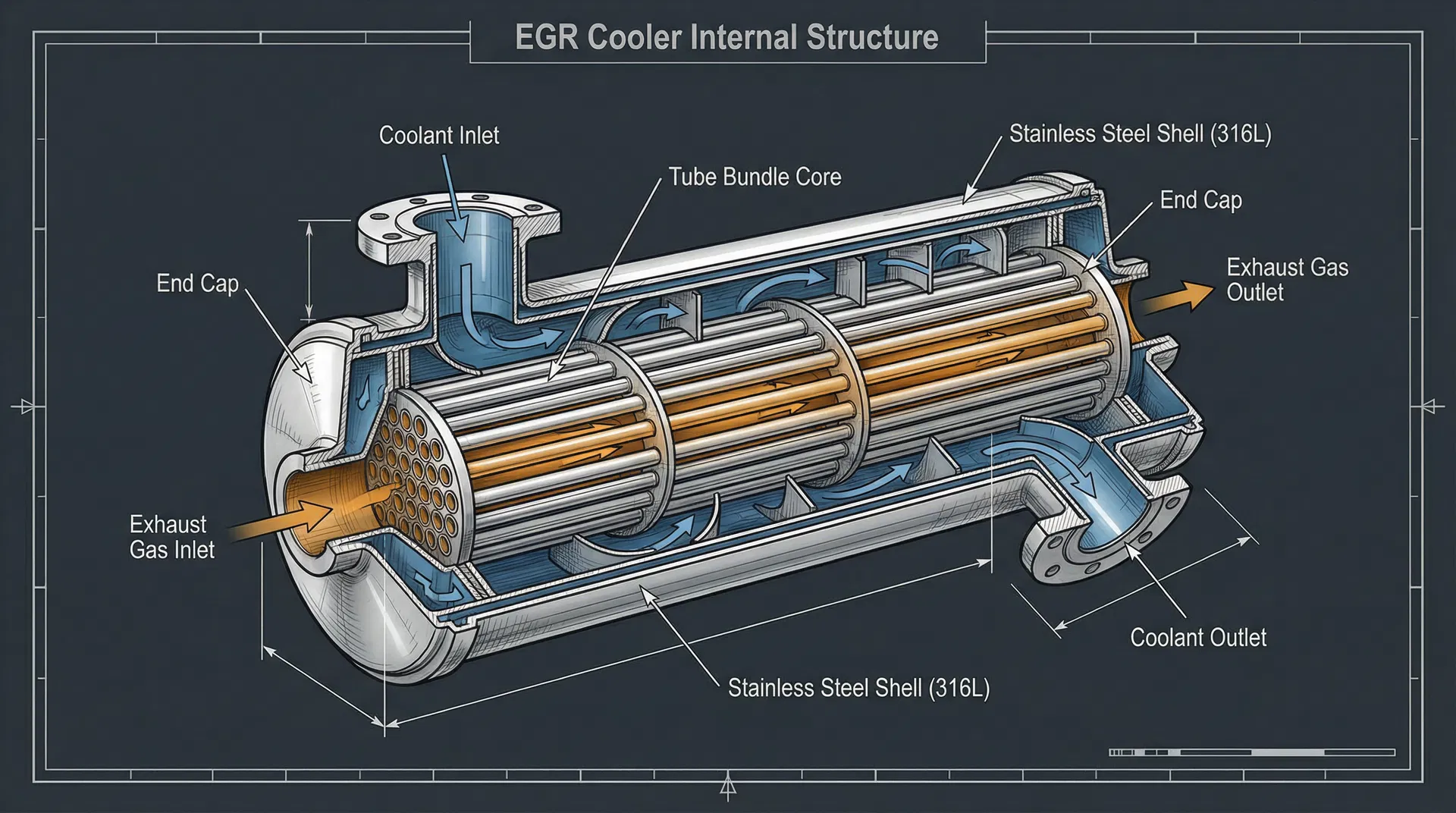

*Figure 3: Cross-section of a SUMEC stainless steel EGR cooler showing coolant and exhaust gas flow paths.*
Not every symptom requires immediate EGR cooler replacement. The following decision framework helps fleet managers and technicians prioritize action based on symptom severity.
Replace immediately if coolant loss exceeds 1 quart per week, white smoke is constant at operating temperature, or any sign of hydrolock (coolant in cylinders) is present. Continued operation risks catastrophic engine damage including bent connecting rods and cracked cylinder heads.
Schedule replacement within 2 weeks if coolant loss is detectable but less than 1 quart per week, white smoke is intermittent, or the degas bottle shows signs of pressurization. The vehicle can operate in the interim but should be monitored daily.
Monitor and retest in 30 days if cooling system pressure holds but is borderline (1-2 PSI drop in 30 minutes), or if coolant loss is suspected but not confirmed. Add coolant dye to help identify the leak source during the monitoring period.
|---|---|---|---|---|
| Action Level | Coolant Loss | White Smoke | Pressure Test | Risk |
|---|
| Immediate replacement | > 1 qt/week | Constant | Rapid decay | Engine damage |
|---|
| Schedule within 2 weeks | < 1 qt/week | Intermittent | Slow decay | Progressive damage |
|---|
| Monitor 30 days | Suspected | None | Borderline | Low, if monitored |
|---|
---
Frequently Asked Questions
Can a failed EGR cooler cause a head gasket to blow?
Not directly. However, a leaking EGR cooler can cause engine overheating if enough coolant is lost, and sustained overheating can warp the cylinder head and compromise the head gasket seal. On the Navistar MaxxForce platform specifically, prolonged EGR cooler leakage has been documented to cause cracked cylinder heads from thermal shock, which then leads to head gasket failure as a secondary consequence.
How do I tell the difference between EGR cooler failure and head gasket failure?
The most reliable field test is the Degas Bottle Bubble Test (described in the Ford 6.0L section above). On the 6.0L Powerstroke, if air bubbles in the degas bottle disappear when the VGT actuator is unplugged, the leak is from the EGR cooler; if bubbles continue, it is the head gasket. On other platforms, a combustion leak detector (block test fluid applied to the coolant reservoir) can detect exhaust gases in the cooling system, but cannot distinguish between EGR cooler and head gasket as the source. In those cases, a pressure test with the EGR cooler isolated (capped off) can confirm the source.
How long can you drive with a leaking EGR cooler?
It depends on the severity. A minor leak (less than 1 quart of coolant loss per week, no visible white smoke at operating temperature) can be monitored for a limited period while a replacement is scheduled. However, any leak that produces constant white smoke or causes the cooling system to lose pressure rapidly should be treated as an emergency — continued operation risks hydrolock (coolant entering the cylinders), which can bend connecting rods and destroy the engine in seconds.
What causes EGR coolers to fail?
The root cause varies by engine platform. On the Ford 6.0L Powerstroke, a clogged oil cooler restricts coolant flow to the EGR cooler, causing localized overheating and tube cracking. On the Navistar MaxxForce, extreme thermal cycling at the tube-to-header brazed joints causes progressive fatigue cracking. On Cummins ISX engines, soot fouling on the exhaust side creates insulating deposits that cause hot spots and accelerate coolant-side corrosion. Across all platforms, inadequate coolant maintenance (depleted SCAs, incorrect coolant type) is a major contributing factor.
Is it worth replacing just the EGR cooler, or should I replace the oil cooler at the same time?
On the Ford 6.0L Powerstroke, replacing the oil cooler simultaneously is strongly recommended. Ford's own TSB (06-15-2) acknowledges that a restricted oil cooler is the upstream cause of most EGR cooler failures on this platform. Replacing the EGR cooler without addressing the oil cooler restriction will likely result in a repeat failure. On other platforms (MaxxForce, Cummins ISX, ISB 6.7L), the oil cooler is not directly implicated in EGR cooler failure, so simultaneous replacement is not necessary unless the oil cooler shows independent signs of restriction.
Can I delete the EGR cooler instead of replacing it?
EGR delete kits are available in the aftermarket, but installing them on vehicles operated on public roads violates the U.S. Clean Air Act (42 U.S.C. § 7522) and can result in fines up to $5,000 per violation for individuals and $500,000 for fleet operators. The EPA has increased enforcement actions against tampering with emissions equipment in recent years. EGR deletes may be legal for off-road or competition-only vehicles, but this should be verified with applicable state and federal regulations before proceeding.
What materials are EGR coolers made from, and does material affect durability?
Most OEM EGR coolers use 409 or 439 ferritic stainless steel for the tubes and end tanks. Higher-grade aftermarket replacements may use 304 austenitic stainless steel, which offers superior corrosion resistance and thermal fatigue life. The most durable designs use 316L stainless steel, which adds molybdenum for enhanced resistance to chloride-induced pitting — particularly relevant in applications where coolant contamination is a concern. The choice of tube material, wall thickness, and brazing method all influence long-term durability.
---
Key Takeaways
EGR cooler diagnosis requires understanding the unique failure modes of each engine platform. The Ford 6.0L's cascading oil cooler failure, the MaxxForce's thermal fatigue vulnerability, the Cummins ISX's soot fouling tendency, and the ISB 6.7L's stop-and-go thermal cycling each demand different diagnostic approaches. Regardless of platform, the combination of a cooling system pressure test, visual inspection, and exhaust smoke analysis remains the most reliable diagnostic triad for confirming EGR cooler failure.
Proactive coolant maintenance, regular EGR system cleaning, and platform-specific monitoring (such as oil cooler temperature deltas on the 6.0L or VGT position tracking on the ISX) can extend EGR cooler life and prevent the costly secondary damage that often accompanies a failed cooler.
---
---
