# Complete Guide to EGR Valve Failure: Symptoms, Causes, and Replacement

Last Updated: March 2026

---

Summary

The exhaust gas recirculation (EGR) valve is an emissions control component that regulates the flow of exhaust gas back into the engine's intake manifold to reduce nitrogen oxide (NOx) emissions. EGR valve failure is one of the most common diesel engine issues, typically caused by carbon buildup, electrical faults, or mechanical wear. Symptoms vary depending on whether the valve is stuck open, stuck closed, or operating intermittently. This guide covers the diagnostic procedures, common failure causes by engine platform, the cleaning-versus-replacement decision framework, and preventive maintenance practices for heavy-duty diesel EGR valves.

---

1. What an EGR Valve Does

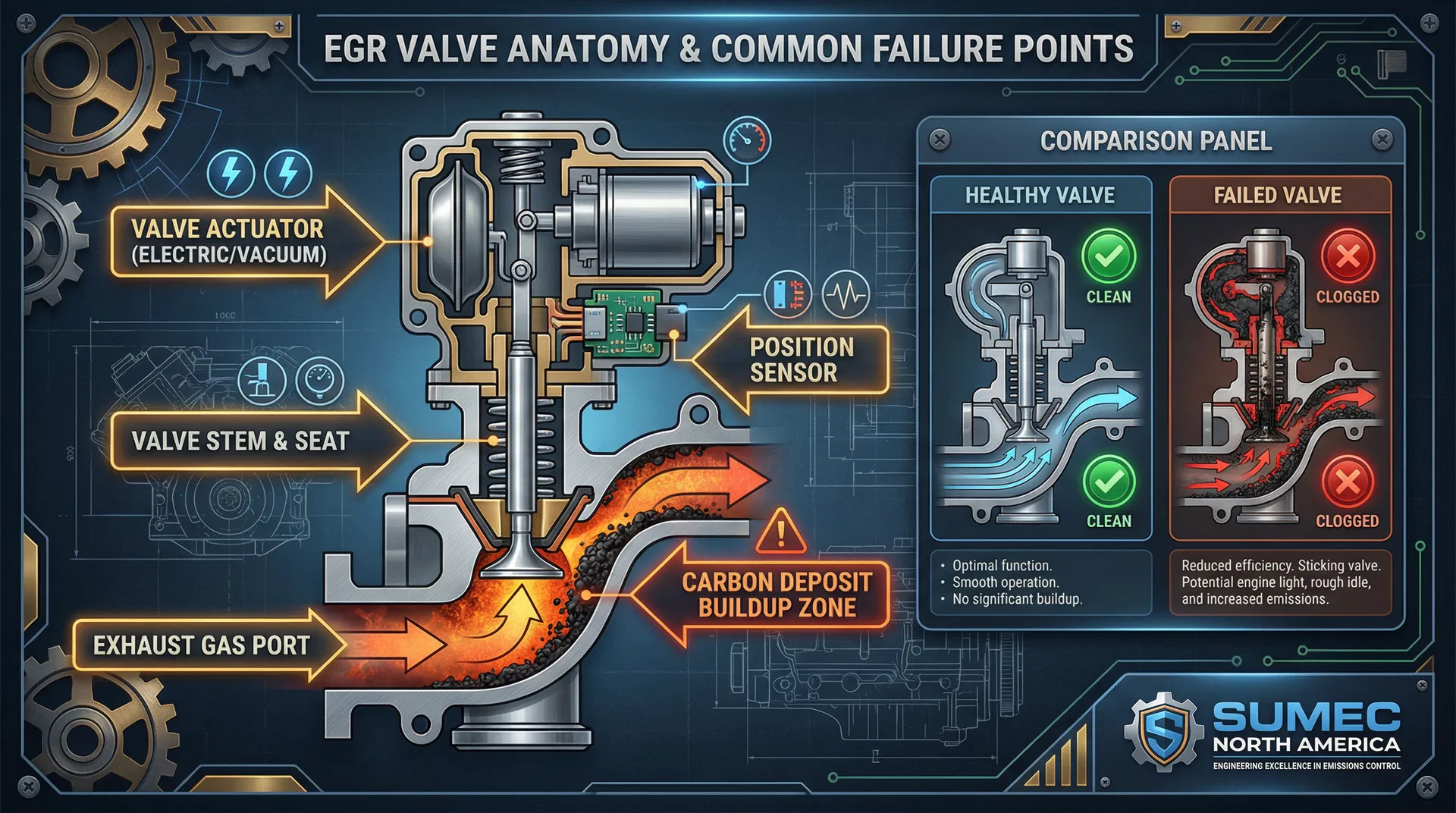

*Figure 1: EGR valve anatomy showing key components and carbon deposit buildup zones.*

The EGR valve controls the volume of exhaust gas that is recirculated from the exhaust manifold back into the intake manifold. By introducing inert exhaust gas into the combustion chamber, the EGR system lowers peak combustion temperatures, which directly reduces the formation of NOx — a regulated pollutant under EPA and CARB standards.

In modern diesel engines, the EGR valve is electronically controlled by the engine control module (ECM). The ECM adjusts the valve position based on engine speed, load, temperature, and other sensor inputs to maintain the optimal balance between emissions reduction and engine performance. The valve itself may be a butterfly type, poppet type, or sliding gate type, depending on the engine platform and manufacturer.

The EGR valve operates in an extremely harsh environment. It is exposed to exhaust gas temperatures that can exceed 700°C on the exhaust side, while the intake side operates at much lower temperatures. This thermal gradient, combined with the soot and particulate matter present in diesel exhaust, makes the EGR valve one of the most failure-prone components in the emissions system.

2. Symptoms of EGR Valve Failure

EGR valve failure manifests differently depending on the failure mode. Understanding the distinction between a valve stuck open, stuck closed, or operating intermittently is critical for accurate diagnosis.

Stuck Open

When the EGR valve is stuck in the open position, exhaust gas flows continuously into the intake manifold, regardless of engine operating conditions. This results in excessive exhaust gas dilution of the intake charge, which causes rough idle, misfires at low RPM, reduced power output, and in severe cases, engine stalling. Black smoke may be visible at idle or low load because the excess exhaust gas displaces fresh air, creating an overly rich fuel-to-air ratio. Fuel economy typically degrades by 10–20% because the engine compensates by injecting more fuel to maintain the commanded power output.

Stuck Closed

When the EGR valve is stuck in the closed position, no exhaust gas is recirculated. The engine runs cleanly and may actually feel more responsive at low RPM, which can mask the problem. However, combustion temperatures rise significantly without the cooling effect of recirculated exhaust gas, leading to elevated NOx emissions. The ECM will typically set a diagnostic trouble code (DTC) related to EGR flow insufficient. In states with emissions testing, a stuck-closed EGR valve will cause an inspection failure. Over time, the elevated combustion temperatures can accelerate wear on valves, pistons, and the turbocharger.

Intermittent Operation

Intermittent EGR valve failure is the most difficult to diagnose. The valve may stick momentarily, operate sluggishly, or fail to reach the commanded position consistently. Symptoms include occasional rough idle, sporadic power loss, fluctuating exhaust gas temperatures, and intermittent check engine lights. The ECM may log pending codes that do not immediately trigger a malfunction indicator lamp (MIL), making the issue easy to overlook during routine maintenance.

3. Common Causes of EGR Valve Failure


*Figure 2: The five most common causes of EGR valve failure, ranked by severity.*

Carbon Buildup

Carbon buildup is the leading cause of EGR valve failure across all diesel engine platforms. Diesel exhaust contains soot and particulate matter that accumulates on the valve seat, stem, and internal passages over time. As carbon deposits build up, the valve's range of motion becomes restricted, eventually causing it to stick in one position. The rate of carbon accumulation depends on fuel quality, engine load profile, oil consumption, and the effectiveness of the diesel particulate filter (DPF) system.

Short-trip driving and extended idle time accelerate carbon buildup because the exhaust temperatures are too low to burn off deposits naturally. Fleets that operate primarily in urban stop-and-go conditions or spend significant time idling (such as delivery trucks, refuse vehicles, and utility trucks) experience EGR valve carbon fouling at a much higher rate than long-haul highway operations.

Electrical and Actuator Faults

Modern EGR valves use electric motors, solenoids, or pneumatic actuators to control valve position. Electrical faults — including corroded connectors, damaged wiring harnesses, failed position sensors, and burned-out actuator motors — can prevent the valve from responding to ECM commands. These faults are more common in vehicles that operate in high-vibration environments (construction, mining, off-road) or in regions with extreme temperature swings.

Coolant Contamination

On engine platforms where the EGR valve is integrated with or adjacent to the EGR cooler, a leaking EGR cooler can introduce engine coolant into the EGR valve assembly. Coolant contamination accelerates carbon deposit formation (because the coolant mixes with soot to create a hard, cement-like residue) and can corrode the valve's internal components. If an EGR valve failure is accompanied by evidence of coolant in the intake manifold, the EGR cooler should be inspected as the root cause.

Mechanical Wear

The EGR valve cycles thousands of times during normal engine operation. Over hundreds of thousands of miles, the valve seat, stem, and sealing surfaces wear, leading to incomplete sealing, internal leaks, and reduced flow control precision. Mechanical wear is a gradual process and is the primary failure mode in high-mileage applications where carbon buildup has been managed through regular maintenance.

4. Common Failure Patterns by Engine Platform

Different engine platforms have characteristic EGR valve failure patterns based on their design, operating environment, and EGR system architecture.

These mileage ranges are approximate and vary significantly based on maintenance practices, fuel quality, and operating conditions. Well-maintained engines with regular EGR system cleaning can exceed these ranges substantially.

5. Diagnostic Procedures

Scan Tool Diagnosis

The first step in diagnosing an EGR valve issue is to connect a scan tool capable of reading OEM-specific diagnostic trouble codes. Common EGR-related DTCs include:

P0401 (EGR Flow Insufficient), P0402 (EGR Flow Excessive), P0403 (EGR Circuit Malfunction), P0404 (EGR Circuit Range/Performance), P0405 (EGR Sensor A Circuit Low), and P0406 (EGR Sensor A Circuit High). On heavy-duty platforms, OEM-specific codes (such as Cummins SPN 27 / FMI 3-4 or Detroit DTC 157-3) provide more detailed fault information.

Visual Inspection

Remove the EGR valve and inspect for carbon buildup, coolant residue, mechanical damage, and actuator condition. The valve should move freely through its full range of motion when actuated by hand (with the electrical connector disconnected). Any binding, grinding, or resistance indicates carbon fouling or mechanical wear.

Actuator Testing

With the EGR valve installed and the engine running, use the scan tool's bidirectional control function to command the EGR valve to specific positions (0%, 25%, 50%, 75%, 100%). Monitor the position sensor feedback to verify that the valve reaches and holds the commanded position. A discrepancy of more than 5% between the commanded and actual position indicates a problem.

6. Cleaning vs Replacement Decision Framework

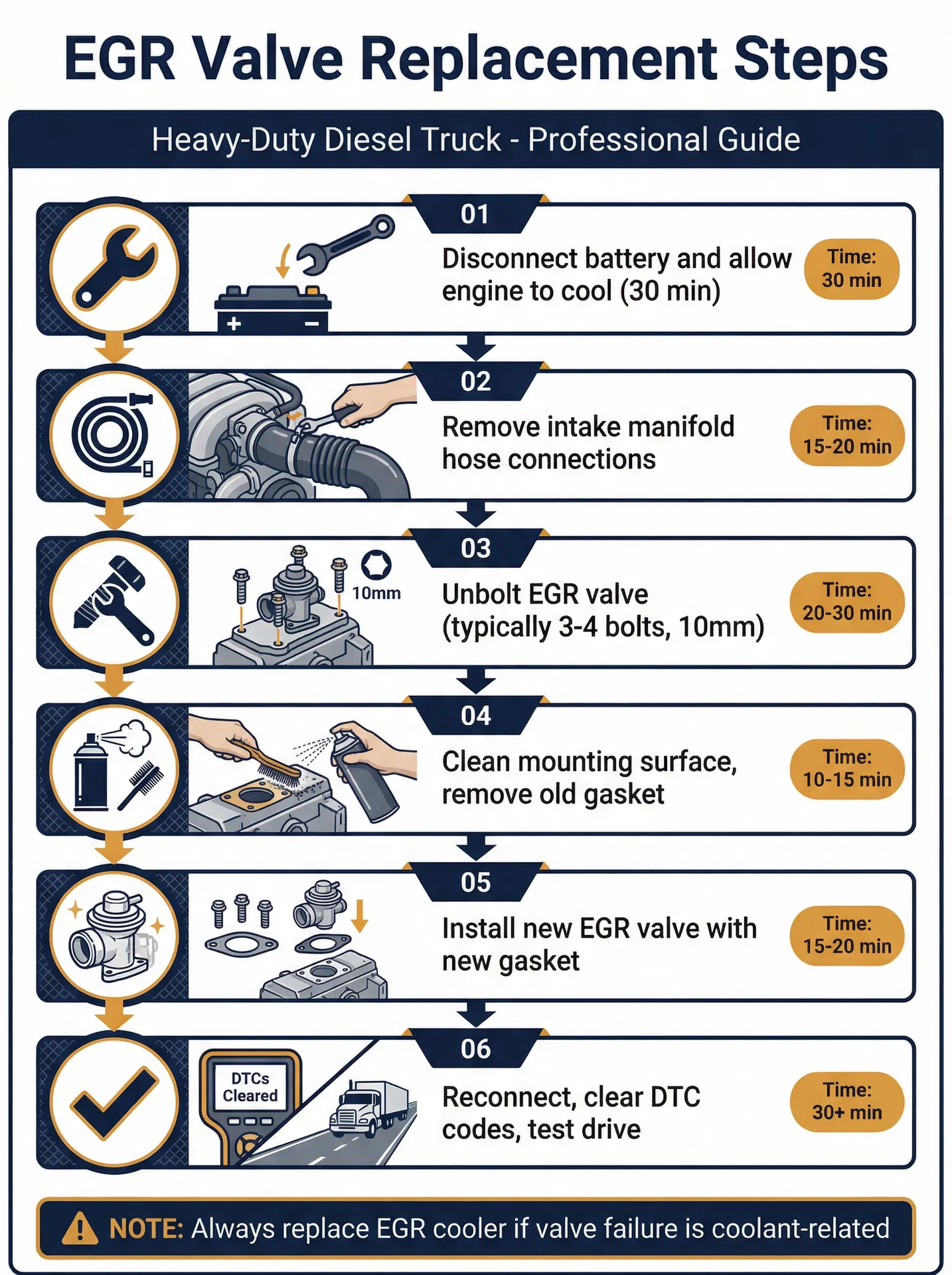

*Figure 3: Step-by-step EGR valve replacement guide for heavy-duty diesel trucks.*

Not every EGR valve failure requires replacement. In many cases, thorough cleaning can restore the valve to full functionality. The decision depends on the failure mode, the valve's condition, and the cost-benefit analysis.

Cleaning is appropriate when the failure is caused by carbon buildup alone, the valve moves freely after cleaning, the position sensor and actuator test within specification, and there is no evidence of coolant contamination or mechanical wear. A properly cleaned EGR valve can provide another 50,000–100,000 miles of service in many applications.

Replacement is necessary when the valve seat or sealing surfaces are worn or pitted, the actuator motor or solenoid is electrically failed, the position sensor is out of calibration and cannot be recalibrated, there is evidence of coolant contamination (which indicates an EGR cooler leak that will re-contaminate a cleaned valve), or the valve body is cracked or warped from thermal stress.

Cost consideration: A new EGR valve typically costs between $200 and $800 depending on the engine platform, while professional cleaning costs $50–$150 in labor. However, if a cleaned valve fails again within 30,000 miles, the total cost (including the second diagnostic visit and downtime) often exceeds the cost of replacement.

7. Preventive Maintenance Recommendations

Proactive EGR valve maintenance can significantly extend service life and reduce unplanned downtime. The following practices are recommended based on industry experience and OEM guidelines:

Regular inspection intervals. Include EGR valve inspection in every major preventive maintenance service. For Class 8 highway trucks, this typically means every 100,000 miles or annually. For vocational and urban-duty vehicles, every 50,000 miles or semi-annually.

Carbon cleaning. Perform preventive carbon cleaning at the intervals above, even if the valve appears to be functioning normally. Removing light carbon deposits before they harden prevents the progressive buildup that leads to sticking.

Intake air filtration. Ensure the air filtration system is properly maintained. While the EGR valve is primarily fouled by exhaust-side contaminants, a compromised air filter can introduce abrasive particles that accelerate mechanical wear.

Fuel quality. Use ULSD (ultra-low sulfur diesel) fuel from reputable suppliers. Higher sulfur content and fuel contaminants increase soot production, which accelerates EGR system fouling.

Idle time reduction. Minimize unnecessary idling. Extended idle periods produce low exhaust temperatures that prevent natural carbon burnoff and accelerate deposit formation. Auxiliary power units (APUs) and automatic engine shutdown systems can reduce idle time for fleets.

8. The EGR Valve and EGR Cooler Relationship

The EGR valve and EGR cooler are functionally interdependent components. A failure in one often causes or accelerates failure in the other, making it important to inspect both whenever either component shows signs of trouble.

An EGR cooler leak introduces coolant into the exhaust gas stream flowing through the EGR valve. The coolant mixes with soot to form a hard, calcium-rich deposit that is far more difficult to remove than normal carbon buildup. This accelerated fouling can cause an EGR valve that was recently cleaned to fail again within a few thousand miles — a pattern that should always prompt an EGR cooler inspection.

Conversely, an EGR valve that is stuck open can allow excessive exhaust gas flow through the EGR cooler, increasing thermal stress and accelerating cooler fatigue. Over time, this can cause the cooler's internal tubes to crack, leading to the coolant leak that then damages the valve.

When replacing an EGR valve, it is best practice to pressure-test the EGR cooler at the same time. When replacing an EGR cooler, the EGR valve should be inspected and cleaned (or replaced if worn). Addressing both components together prevents the cascade failure pattern that leads to repeat repairs.

---

Frequently Asked Questions

Q: Can I drive with a bad EGR valve?

A: A vehicle with a failed EGR valve will typically continue to run, but driving with a known EGR valve failure is not recommended. A stuck-open valve causes rough idle, reduced power, and increased fuel consumption. A stuck-closed valve elevates combustion temperatures and NOx emissions, which can accelerate wear on other engine components. In jurisdictions with emissions testing, a failed EGR valve will cause an inspection failure.

Q: How much does it cost to replace an EGR valve on a diesel truck?

A: The part cost for a new EGR valve ranges from approximately $200 to $800 depending on the engine platform. Labor costs vary by shop rate and accessibility, but typically range from 1 to 3 hours. Total replacement cost, including parts and labor, is generally $400 to $1,200 for most heavy-duty diesel applications.

Q: Can I clean an EGR valve myself?

A: Yes, EGR valve cleaning is a common DIY maintenance task. The valve is removed, soaked in a carbon-dissolving solvent (such as a commercial intake cleaner), and the deposits are removed with brushes and picks. However, it is important to test the actuator and position sensor after cleaning to verify full functionality. If the valve does not move freely or the sensor readings are out of specification, replacement is necessary.

Q: What is the difference between an EGR valve and an EGR cooler?

A: The EGR valve controls the flow of exhaust gas into the intake manifold — it opens and closes to regulate how much exhaust gas is recirculated. The EGR cooler is a heat exchanger that cools the exhaust gas before it passes through the EGR valve and into the intake. They are separate components that work together as part of the EGR system.

Q: Does deleting the EGR system improve engine performance?

A: EGR delete modifications are illegal under the EPA Clean Air Act for vehicles used on public roads in the United States. Violations can result in fines of up to $5,000 per vehicle for individuals and significantly higher penalties for businesses. Beyond the legal issues, removing the EGR system can void the engine warranty and may cause the ECM to enter a derated mode on newer engine platforms.

Q: How do I know if my EGR valve or EGR cooler is the problem?

A: If the EGR valve is sticking due to carbon buildup but there is no evidence of coolant in the intake manifold, the valve is likely the primary issue. If there is white residue, a sweet smell from the intake, or coolant loss without an external leak, the EGR cooler is likely leaking and should be pressure-tested. In many cases, both components are compromised and should be addressed together.

Q: What causes an EGR valve to fail prematurely?

A: The most common cause of premature EGR valve failure is excessive carbon buildup from extended idle time, short-trip driving, poor fuel quality, or high oil consumption. Electrical failures from corroded connectors or damaged wiring are the second most common cause. Coolant contamination from a leaking EGR cooler is a less common but more serious cause that requires addressing the cooler leak to prevent recurrence.

---

References

[1] EPA, "Tampering with Vehicle Emissions Controls," Clean Air Act Section 203(a). https://www.epa.gov/enforcement/clean-air-act-vehicle-and-engine-enforcement-case-resolutions

[2] SAE International, "J1850: Class B Data Communications Network Interface," SAE Standard. https://www.sae.org/standards/content/j1850_201510/

[3] Cummins Inc., "ISB/ISC/ISL EGR System Service Manual," Cummins Bulletin 4021533.

[4] DieselNet Technology Guide, "Exhaust Gas Recirculation." https://dieselnet.com/tech/engine_egr.php

[5] Ford Motor Company, "6.7L Power Stroke Diesel Engine Workshop Manual," Section 303-08: Exhaust Gas Recirculation System.

---

*This article is provided for informational and educational purposes only. It does not constitute professional engineering or mechanical advice. Always consult the OEM service manual and a qualified technician for diagnosis and repair decisions specific to your engine and application.*

---
