Ford Transit TDCi & EcoBlue EGR Cooler Failure: Complete Diagnostic and Replacement Guide
Quick Answer: Ford TDCi and EcoBlue EGR cooler selection varies by engine, vehicle, and build date. Confirm the OE reference by VIN and the current OEM catalog before ordering. Common failure symptoms: white exhaust smoke, coolant loss, and a sweet burning smell.
Why Ford TDCi and EcoBlue EGR Coolers Fail
Ford's Duratorq TDCi diesel engine family — spanning the 1.8 TDCi, 2.0 TDCi, 2.2 TDCi, and the newer 2.0 EcoBlue — powers millions of Transit, Transit Custom, Tourneo Custom, Kuga, Focus, C-Max, Galaxy, and S-Max vehicles worldwide. These engines are workhorses in the commercial van and light-duty segments, prized for their torque output and fuel efficiency. However, they share a common vulnerability: the Exhaust Gas Recirculation (EGR) cooler.

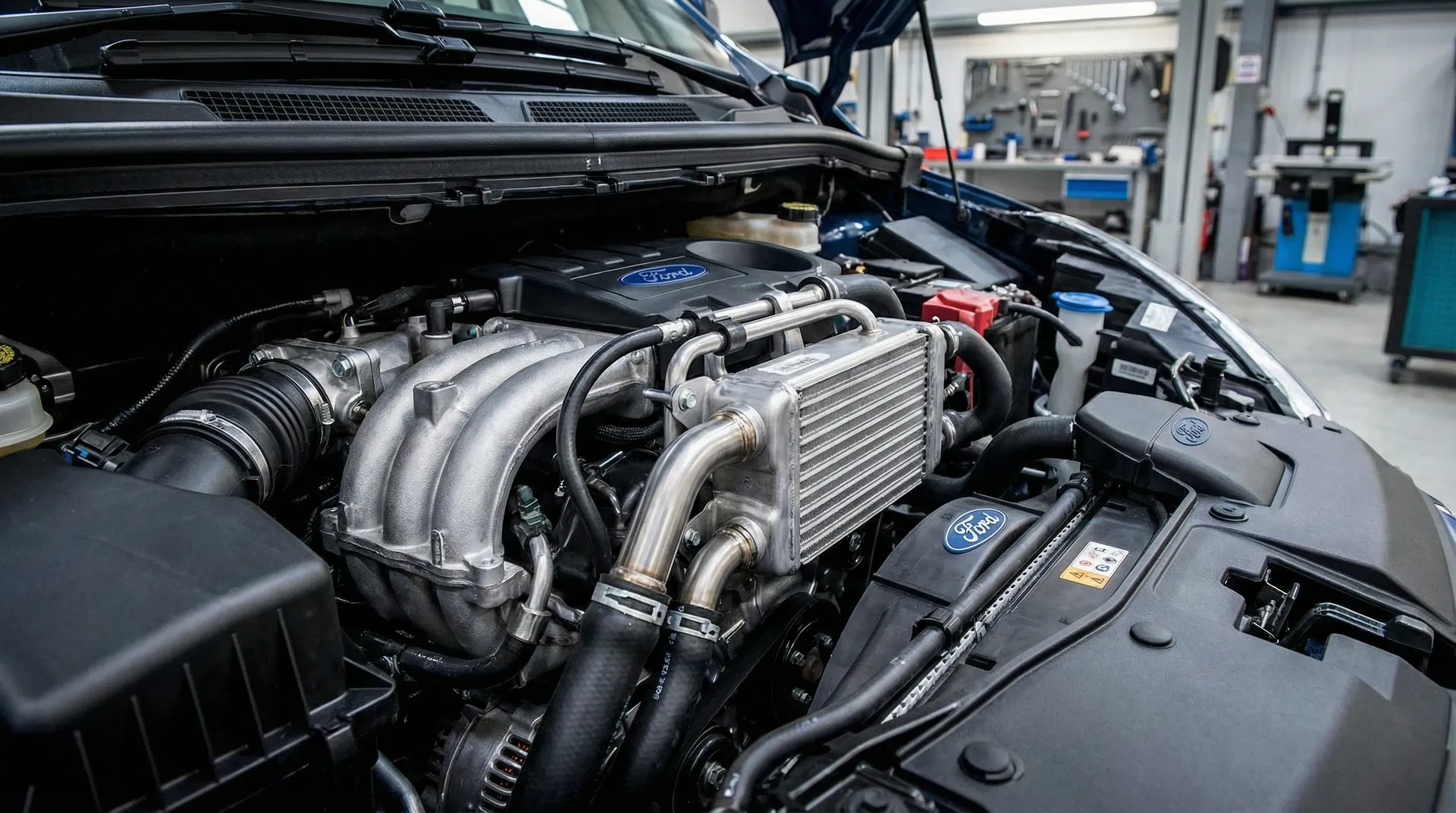

!Ford Transit engine bay showing EGR cooler location on the Duratorq TDCi diesel engine
The EGR cooler in Ford diesel engines is a heat exchanger that uses engine coolant to reduce the temperature of recirculated exhaust gases before they re-enter the intake manifold. This process lowers combustion temperatures and reduces nitrogen oxide (NOx) emissions. The cooler itself is typically a tube-and-fin or plate-type design, constructed from stainless steel or aluminum alloy, and it operates under extreme thermal stress — exhaust gas temperatures entering the cooler can exceed 700°C (1,292°F), while the coolant side operates at approximately 90°C (194°F).
This enormous temperature differential, combined with the constant thermal cycling that occurs during normal driving — especially in stop-and-go commercial use — creates the conditions for fatigue failure. Over time, the internal tubes or plates develop micro-cracks, allowing engine coolant to leak into the exhaust gas passage or, less commonly, exhaust gas to pressurize the cooling system.
The Two Primary Failure Modes
Ford TDCi and EcoBlue EGR coolers fail in two distinct ways, and understanding which failure mode is occurring determines the correct diagnostic approach and the urgency of repair.
Internal Rupture (Coolant-to-Exhaust Leak)
This is the more common and more dangerous failure mode. When the internal heat exchanger tubes or plates crack, pressurized engine coolant (operating at 15–20 PSI) leaks into the lower-pressure exhaust gas passage. The leaked coolant is then carried into the intake manifold, where it enters the combustion chambers. This produces several characteristic symptoms and, if left unaddressed, can lead to catastrophic engine damage including hydro-lock — a condition where liquid coolant fills a cylinder and prevents the piston from completing its compression stroke, potentially bending connecting rods or cracking the cylinder head.

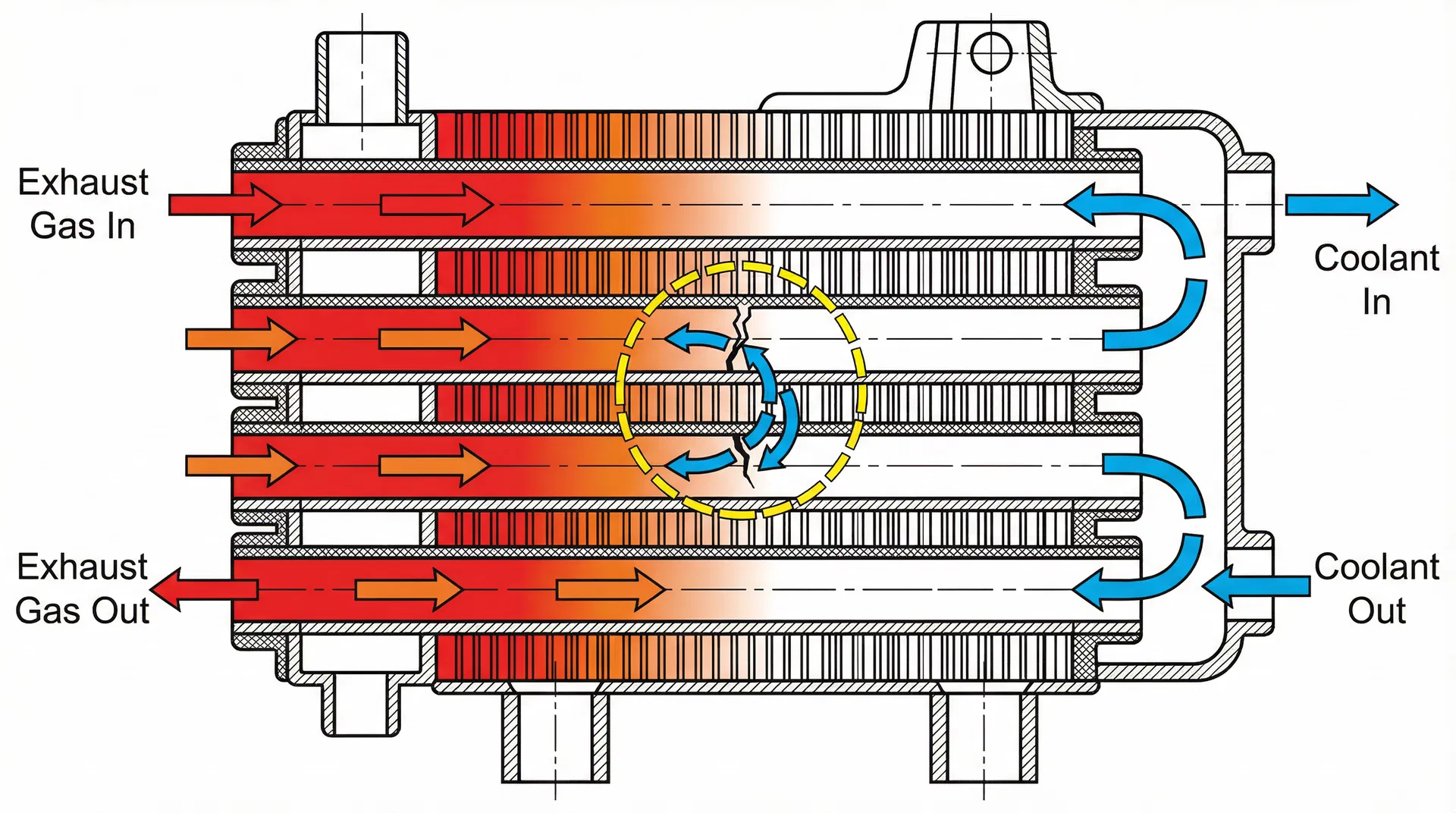

!Technical cross-section of an EGR cooler showing internal crack allowing coolant to leak into the exhaust gas passage
External Blockage (Carbon Clogging)
The second failure mode involves the gradual accumulation of carbon soot deposits on the exhaust gas side of the cooler. Diesel exhaust contains particulate matter, and over tens of thousands of miles, this soot builds up inside the narrow passages of the EGR cooler, progressively restricting exhaust gas flow. A clogged EGR cooler reduces EGR flow below the threshold expected by the engine control module (ECM), triggering diagnostic trouble codes and potentially causing the vehicle to enter limp mode.
Symptoms of a Failing Ford EGR Cooler
The symptoms of EGR cooler failure in Ford TDCi and EcoBlue engines are progressive. Early detection — before the leak becomes severe — can prevent secondary engine damage and significantly reduce repair costs.
Unexplained coolant loss is typically the first sign. The coolant level in the expansion tank drops gradually over days or weeks, but there are no visible puddles under the vehicle and no wet spots on hoses, the radiator, or the water pump. If coolant is disappearing without an external leak, the EGR cooler should be the primary suspect.
White or gray smoke from the exhaust appears when coolant enters the combustion chambers. Unlike the brief puff of white vapor that is normal on cold starts, EGR cooler-related smoke persists after the engine reaches operating temperature and has a distinctly sweet smell — the odor of burning ethylene glycol. The smoke is most noticeable under load or during acceleration.
Bubbles in the coolant expansion tank indicate that exhaust gas is being forced into the cooling system through the cracked EGR cooler. With the engine running and the expansion tank cap removed (on a cool engine), visible bubbling or frothing in the coolant is a strong indicator of an internal breach. This symptom can also indicate a head gasket failure, so further diagnosis is required to isolate the source.
Engine overheating occurs as coolant volume decreases. The cooling system loses its ability to maintain operating temperature, and the temperature gauge climbs into the red zone. In Ford Transit and Transit Custom models, the dashboard may display an "Engine Temperature High — Shut Off Engine" warning. Continued operation with low coolant can warp the cylinder head or damage the head gasket, compounding the repair cost.
Rough idle and misfires can occur when significant quantities of coolant enter the cylinders. The engine may stumble, shake, or produce uneven exhaust pulses at idle. In severe cases, the engine may be difficult to start — particularly after sitting overnight, as coolant pools in the cylinders.
Check engine light with EGR-related fault codes is common in both failure modes. The most frequently seen codes on Ford TDCi engines include P0401 (EGR Flow Insufficient), P0402 (EGR Flow Excessive), P2413 (EGR System Performance), and P0299 (Turbo/Supercharger Underboost) — the last of which can be triggered when coolant contamination affects the variable geometry turbocharger (VGT).
Affected Ford Models and OE Part Numbers
Use these links as catalog references only:
|---|---|
Do not infer engine, model, model year, or interchangeability from this list. Confirm compatibility by VIN and the current OEM catalog.
Step-by-Step Diagnostic Procedure
Before replacing the EGR cooler, it is essential to confirm that the cooler is the actual source of the problem. Coolant loss, white smoke, and overheating can also be caused by a failed head gasket, cracked cylinder head, or leaking turbocharger oil seal. The following diagnostic procedure helps isolate the EGR cooler as the root cause.
Step 1: Visual Inspection. With the engine cold, remove the EGR valve from the intake manifold side. Inspect the bore and the inside of the intake manifold for wet coolant residue, white crystalline deposits, or a milky sludge. These indicate that coolant has been passing through the EGR system. If the EGR valve bore is dry and clean, the EGR cooler is less likely to be the source of coolant loss.
Step 2: Cooling System Pressure Test. Follow the pressure and hold-time limits in the service information for the exact vehicle. With the engine off, monitor the gauge for a pressure drop and inspect for external leaks before investigating an internal leak.
Step 3: Isolate the EGR Cooler. To confirm the EGR cooler specifically, disconnect the coolant supply and return hoses from the cooler and cap them. Repeat the pressure test. If the system now holds pressure, the EGR cooler is confirmed as the leak source. If pressure still drops with the cooler isolated, investigate the head gasket and cylinder head.
Step 4: Exhaust Gas in Coolant Test. Use a combustion leak detector (block tester) on the coolant expansion tank. This tool uses a chemical reagent that changes color in the presence of combustion gases. A positive result confirms that exhaust gas is entering the cooling system. While this test can also detect head gasket leaks, combining it with the EGR cooler isolation test from Step 3 provides a definitive diagnosis.
Step 5: Scan for Fault Codes. Connect a diagnostic scanner (Ford IDS/FDRS or a quality aftermarket tool) and record all stored and pending fault codes. EGR-related codes (P0401, P0402, P2413) combined with coolant loss symptoms strongly suggest EGR cooler failure. Also check for misfire codes (P0300–P0304) which may indicate coolant entering the cylinders.
Replacement Procedure Overview
EGR cooler replacement on Ford TDCi and EcoBlue engines varies in complexity depending on the engine variant and vehicle platform. The 1.8 TDCi in the Focus and C-Max is relatively accessible, while the 2.2 TDCi in the Transit Custom requires significantly more disassembly due to the cooler's position deep in the engine bay.
For a 2.2 TDCi application, the general procedure may involve disconnecting the battery, draining the cooling system, removing intake components, disconnecting the EGR valve connections, removing the valve, disconnecting the cooler hoses, and removing the cooler from its mounting. Follow the service information for the exact VIN because access and required seals vary by vehicle.
For a 2.0 EcoBlue application, review the VIN-specific service information before disassembly because module layout, coolant routing, and access steps can differ from earlier TDCi systems.
Regardless of the engine variant, the following best practices apply to all Ford EGR cooler replacements:
- Flush the cooling system thoroughly after removing the failed cooler. Contaminated coolant can carry debris into the heater core, water pump, and thermostat housing.
- Inspect the EGR valve while it is removed. Carbon buildup on the valve is common and can cause sticking or incomplete closure. Clean or replace the valve as needed.
- Replace all gaskets and O-rings at the cooler-to-manifold and cooler-to-pipe connections. Reusing old gaskets risks creating new leak paths.
- Pressure test the new cooler before installation if possible. While quality aftermarket coolers are factory-tested, confirming integrity before bolting it in place saves time if a rare defective unit is encountered.
- Refill with the correct coolant specification. Ford TDCi engines require Motorcraft Orange Coolant (WSS-M97B44-D) or equivalent. The EcoBlue engines use the same specification. Do not mix coolant types.
EGR Cooler vs. Head Gasket: How to Tell the Difference
One of the most common diagnostic challenges with Ford TDCi engines is distinguishing between EGR cooler failure and head gasket failure, as both conditions produce similar symptoms — coolant loss, white smoke, overheating, and bubbles in the expansion tank. Misdiagnosis is expensive: replacing an EGR cooler when the head gasket is the actual problem means the symptoms will persist, and vice versa.
The key differentiator is the EGR cooler isolation test described in Step 3 above. If capping the cooler's coolant lines stops the pressure loss, the cooler is the culprit. If pressure continues to drop with the cooler isolated, the head gasket or cylinder head is the more likely source.
Additional clues include oil contamination — a head gasket failure often allows coolant to mix with engine oil, producing a milky emulsion visible on the oil filler cap or dipstick. EGR cooler failure does not typically contaminate the engine oil because the coolant leaks into the exhaust gas passage, not the oil gallery.
Exhaust gas analysis can also help. A head gasket leak tends to produce hydrocarbon contamination in the coolant, while an EGR cooler leak may show elevated CO2 levels in the coolant without significant hydrocarbon presence.
Preventive Maintenance Tips
While EGR cooler failure is ultimately a wear-and-tear issue driven by thermal cycling, several maintenance practices can extend the cooler's service life and reduce the likelihood of premature failure.
Maintain the cooling system. Ensure the coolant is at the correct concentration (typically 50/50 with distilled water) and is changed at the manufacturer-recommended intervals. Degraded coolant loses its corrosion inhibitors, which can accelerate internal corrosion of the EGR cooler's heat exchanger surfaces.
Address EGR valve issues promptly. A sticking or clogged EGR valve can alter the flow dynamics through the cooler, creating hot spots and uneven thermal loading that accelerate fatigue cracking. If the EGR valve is cleaned or replaced, inspect the cooler at the same time.
Avoid excessive short trips. Commercial vehicles that make frequent short trips with cold starts and limited warm-up time subject the EGR cooler to more severe thermal cycling than vehicles that operate at steady-state temperatures for extended periods. While this is often unavoidable in delivery and service applications, awareness of the increased stress can inform more frequent inspection intervals.
Monitor coolant levels regularly. A simple weekly check of the expansion tank level can catch a slow internal leak before it progresses to the point of causing overheating or engine damage. Any unexplained coolant loss — even a small amount — should be investigated promptly.
Frequently Asked Questions
Q: Can I drive with a leaking EGR cooler?
Driving with a known EGR cooler leak is not recommended. A small internal leak will progressively worsen, and the consequences of continued operation include engine overheating, cylinder head warping, and in extreme cases, hydro-lock — where liquid coolant fills a cylinder and causes catastrophic mechanical failure when the piston attempts to compress it. If the leak is minor and the vehicle must be driven a short distance to a repair facility, monitor the coolant level and temperature gauge closely and stop immediately if the temperature rises above normal.
Q: How long does a Ford EGR cooler typically last?
There is no fixed mileage interval for EGR cooler replacement. In Ford TDCi engines, cooler failures have been reported anywhere from 60,000 miles to over 150,000 miles, depending on driving conditions, maintenance history, and the specific engine variant. Commercial vehicles used in stop-and-go delivery service tend to experience earlier failures due to more severe thermal cycling. The 2.2 TDCi in the Transit Custom appears to be particularly susceptible, with many failures reported in the 80,000–120,000 mile range.
Q: Is it worth upgrading to a stainless steel EGR cooler?
Compare the documented material, construction, corrosion protection, supplier test records, and warranty terms for the exact replacement under consideration. Do not assume material or service-life advantages without product-specific documentation.
Q: Should I delete the EGR system instead of replacing the cooler?
EGR deletion — removing or bypassing the EGR system entirely — is illegal in most jurisdictions for vehicles used on public roads. In the United States, tampering with emissions control equipment violates the Clean Air Act and can result in civil penalties. In the European Union, EGR deletion will cause a vehicle to fail its MOT or equivalent roadworthiness inspection. Beyond the legal issues, EGR deletion can trigger persistent check engine lights and may void the vehicle's warranty. For vehicles used exclusively off-road or in competition, EGR deletion may be considered, but for road-registered vehicles, replacement with a quality cooler is the correct approach.
Q: What coolant should I use after replacing the EGR cooler?
Ford specifies Motorcraft Orange Coolant meeting specification WSS-M97B44-D for all TDCi and EcoBlue diesel engines. This is an organic acid technology (OAT) coolant with a service life of up to 10 years or 150,000 miles. Do not mix it with silicate-based (green) or hybrid (yellow) coolants, as mixing can cause gelling, reduced corrosion protection, and potential damage to the new EGR cooler and other cooling system components. After EGR cooler replacement, a complete cooling system flush with distilled water is recommended before refilling with fresh coolant.
---
