Mercedes-Benz Actros MP4/MP5 EGR Cooler Replacement Guide

Overview

The Mercedes-Benz Actros MP4 (2011–2018) and MP5 (2018–present) are equipped with the OM471 inline-six diesel engine, displacing 12.8 liters and producing up to 530 hp. To meet Euro 6 emissions standards, these trucks rely on an advanced Exhaust Gas Recirculation (EGR) system that includes a high-efficiency EGR cooler. Under heavy-duty long-haul conditions, the EGR cooler is subjected to extreme thermal cycling, making it one of the most maintenance-sensitive components on the platform.

SUMEC North America supplies four OE-equivalent EGR cooler part numbers for the Actros MP4/MP5 fleet: A4711404875, A4711405175, A4711408875, and A4711409875. Each is manufactured to OEM dimensional tolerances with 316L stainless steel tube bundles and pressure-tested at 45 PSI before shipment.

OE Part Number Cross-Reference

*Figure 2: Mercedes-Benz Actros EGR Cooler part number guide — Euro 5 vs Euro 6, MP4 vs MP5 variants*

Common Failure Symptoms

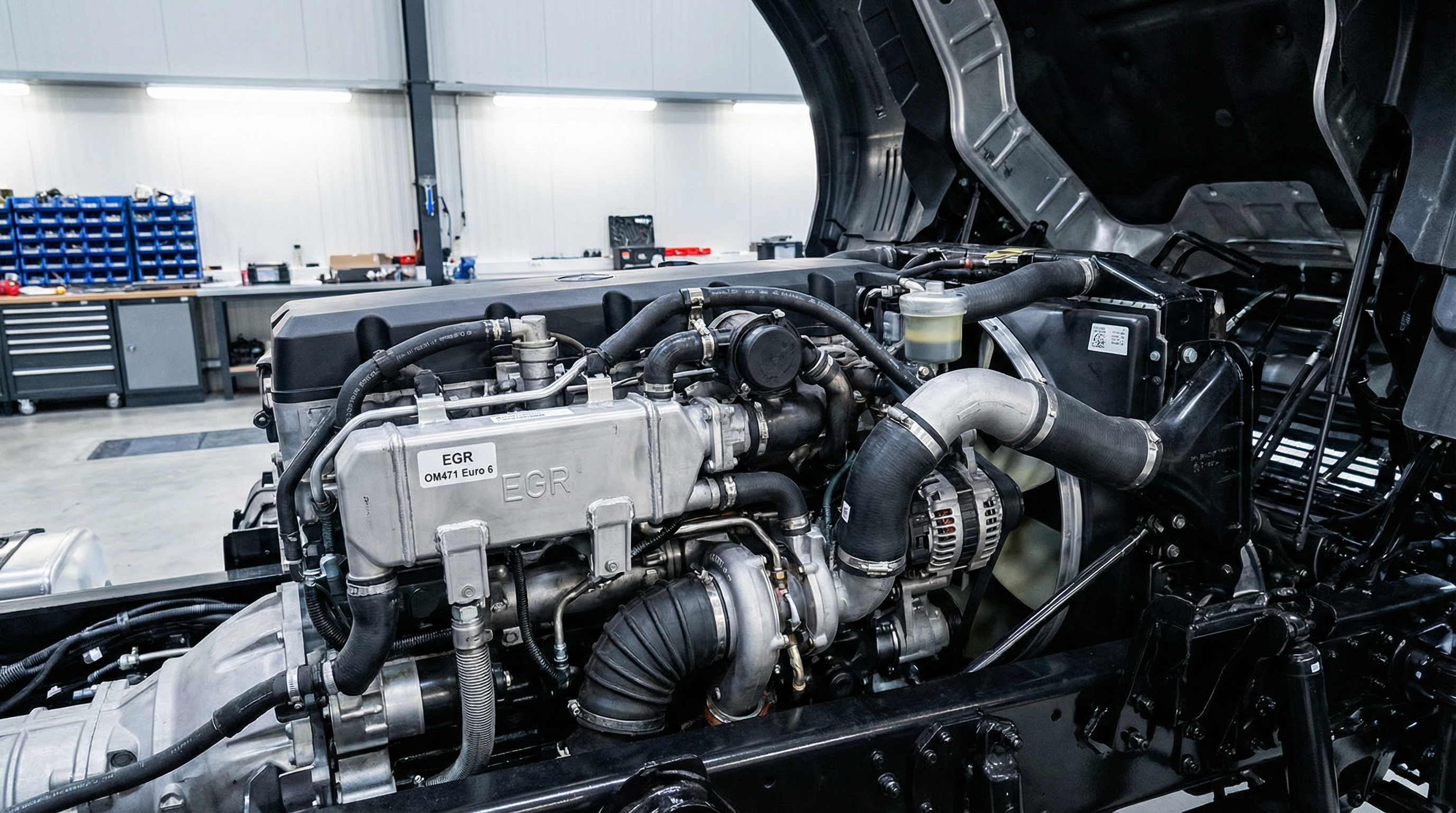

*Figure 1: Mercedes-Benz Actros MP4 OM471 Euro 6 engine — EGR Cooler location in the engine bay*

The OM471 EGR cooler typically fails in one of three modes: internal coolant leak, external exhaust leak, or complete core collapse. Recognizing the early warning signs can prevent secondary damage to the EGR valve, intake manifold, and turbocharger.

Coolant Loss Without External Leaks

If the coolant reservoir requires frequent top-ups but no external puddles are visible, the EGR cooler core may be leaking internally. Coolant enters the exhaust stream and is expelled as white steam from the exhaust pipe, particularly during cold starts.

White or Gray Exhaust Smoke

Persistent white smoke at operating temperature — distinct from the brief white plume during cold starts — is a reliable indicator of coolant combustion. On the Actros OM471, this symptom often appears first at idle after a long downhill run, when exhaust temperatures drop and condensation reveals the leak.

Fault Codes P0401 / P0402 / P242F

The Actros ADBLUE/SCR system monitors EGR flow rate. A degraded cooler reduces EGR efficiency, triggering fault codes related to insufficient or excessive EGR flow. These codes often appear before visible symptoms and should prompt immediate inspection.

Elevated Coolant Temperature

A partially blocked EGR cooler core restricts coolant flow, reducing the system’s ability to dissipate heat. This manifests as elevated coolant temperature readings on the instrument cluster, especially under load.

Diagnosis Procedure

Step 1: Visual Inspection

With the engine cold, inspect the EGR cooler housing and coolant hose connections for white crystalline deposits (dried coolant) or soot staining. On the Actros, the EGR cooler is located on the left side of the engine block, accessible after removing the engine cover panel.

Step 2: Cooling System Pressure Test

Pressurize the cooling system to 1.4 bar (20 PSI) using a cooling system pressure tester. Monitor for pressure drop over 10 minutes. A drop of more than 0.1 bar indicates an internal leak. On the Actros, this test is most effective when performed with the EGR valve closed to isolate the cooler circuit.

Step 3: Exhaust Backpressure Check

Connect a manometer to the EGR outlet port. Elevated backpressure (above 0.3 bar at idle) suggests a collapsed or heavily sooted core. This test differentiates between a leaking cooler and a blocked one.

Step 4: Borescope Inspection

If the pressure test is inconclusive, a borescope inspection of the EGR cooler inlet and outlet tubes can reveal core deformation, soot bridging, or visible coolant residue.

Replacement Procedure

**Note:** This procedure applies to Actros MP4 and MP5 trucks equipped with the OM471 engine. Always consult the Mercedes-Benz WIS (Workshop Information System) for torque specifications specific to your build date.

Required Tools

• Torque wrench (10–80 Nm range)
• Cooling system pressure tester
• EGR cooler gasket set (OE reference: A4711420080)
• Coolant drain pan (minimum 15 L capacity)
• Snap-ring pliers for coolant hose clamps

Procedure

1. Allow the engine to cool completely (minimum 2 hours after shutdown).

2. Drain the cooling system by opening the drain valve at the bottom of the radiator. Collect coolant for proper disposal or reuse if uncontaminated.

3. Disconnect the negative battery terminal to prevent accidental EGR valve actuation.

4. Remove the engine cover panel (4× M8 bolts, 13 Nm).

5. Disconnect the EGR coolant inlet and outlet hoses. Use snap-ring pliers to release the spring clamps. Have rags ready — residual coolant will drain from the hoses.

6. Disconnect the EGR gas inlet pipe from the exhaust manifold (3× M10 bolts, 25 Nm). Note the orientation of the gasket for reinstallation.

7. Disconnect the EGR gas outlet pipe from the EGR valve (2× M8 bolts, 20 Nm).

8. Remove the EGR cooler mounting bracket bolts (4× M10, 35 Nm) and lift the cooler assembly clear of the engine bay.

9. Install the new EGR cooler in reverse order. Use new gaskets at all gas-side connections. Torque all fasteners to specification.

10. Refill the cooling system with Mercedes-Benz approved MB 325.0 coolant (pre-mixed 50/50). Bleed the system using the bleed screw on the thermostat housing.

11. Start the engine and monitor for leaks. Run to operating temperature and verify no fault codes are present.

Why OEM-Grade Replacement Matters

The OM471 EGR cooler operates at exhaust gas temperatures up to 650°C on the hot side and coolant temperatures up to 95°C on the cold side. This extreme differential creates significant thermal stress on the tube bundle joints. Aftermarket coolers using carbon steel or thinner-wall tubing typically fail within 12–18 months under European long-haul duty cycles.

SUMEC’s Actros EGR coolers use 316L stainless steel tube bundles with a minimum wall thickness of 0.4 mm, matching OEM specifications. Each unit undergoes a 45 PSI hydrostatic pressure test and a 500-cycle thermal shock test before shipment. This ensures reliable performance across the full service interval of 150,000 km or 3 years, whichever comes first.

Maintenance Recommendations

• Replace the EGR cooler every 300,000 km or at the first sign of coolant loss, whichever comes first.
• Inspect and clean the EGR valve whenever the cooler is replaced — a contaminated valve accelerates cooler fouling.
• Use only MB 325.0 or equivalent OAT (Organic Acid Technology) coolant. Conventional green coolant causes accelerated corrosion in the OM471 cooling circuit.
• After replacement, perform a DPF regeneration cycle to clear any accumulated soot from the exhaust system.
