Volvo D13 Oil Cooler Failure: Symptoms, Diagnosis, and When to Replace

Introduction: Why Volvo D-Series Oil Coolers Fail

The oil cooler in Volvo D-series engines — including the D11, D12, D13, and D16 — is a plate-type heat exchanger mounted between the engine block and the coolant circuit. Its job is straightforward: transfer excess heat from the engine oil into the coolant stream, keeping oil viscosity within the narrow range required for proper bearing lubrication and turbocharger protection. When this component fails, oil and coolant begin to mix internally, triggering a chain of damage that can progress from minor contamination to catastrophic engine seizure in a matter of days.

Volvo D13 oil cooler failure is particularly common in trucks with 400,000 to 800,000 miles on the original cooler. The failure mechanism is almost always the same: repeated thermal cycling weakens the internal gaskets and O-rings that separate the high-pressure oil circuit (60–80 PSI) from the lower-pressure coolant circuit (15–20 PSI). Once a seal breach occurs, the pressure differential forces oil into the coolant — not the other way around. This pressure-driven contamination pattern is a critical diagnostic clue that separates oil cooler failure from other causes of fluid mixing.

This guide covers the six warning symptoms every fleet manager and owner-operator should watch for, a step-by-step diagnostic procedure, and the often-misunderstood difference between a failed oil cooler and a blown head gasket.

---

Six Warning Symptoms of Volvo D13 Oil Cooler Failure

Catching oil cooler failure early is the difference between a $1,500 repair and a $25,000 engine rebuild. The following six symptoms appear in roughly the order they develop as the internal leak progresses.

1. Milky Oil on the Dipstick or Filler Cap

The earliest and most recognizable sign of Volvo D13 oil cooler failure is a milky, coffee-colored emulsion visible on the oil dipstick or under the valve cover filler cap. This "chocolate milkshake" appearance results from coolant mixing with engine oil inside the oil cooler. Even a small amount of coolant contamination — as little as 0.1% by volume — is enough to compromise the oil's lubricating film strength and accelerate bearing wear.

2. Coolant Loss Without Visible External Leaks

If your Volvo truck is consuming coolant but there are no puddles under the engine, no wet spots on hoses, and no visible drips from the water pump, the coolant is almost certainly leaking internally through the oil cooler. Fleet operators frequently describe this symptom as the first clue that prompted a deeper investigation — the degas bottle level drops steadily, but nothing is visibly leaking.

3. Oil Film or Sludge in the Coolant Reservoir

Open the coolant degas bottle and look at the underside of the cap. If you see a greasy film, a rainbow sheen on the coolant surface, or thick brownish sludge coating the cap, oil is entering the cooling system. Because engine oil operates at significantly higher pressure than the coolant circuit, a breached oil cooler will push oil into the coolant rather than pulling coolant into the oil. This directional contamination is a hallmark of oil cooler failure specifically.

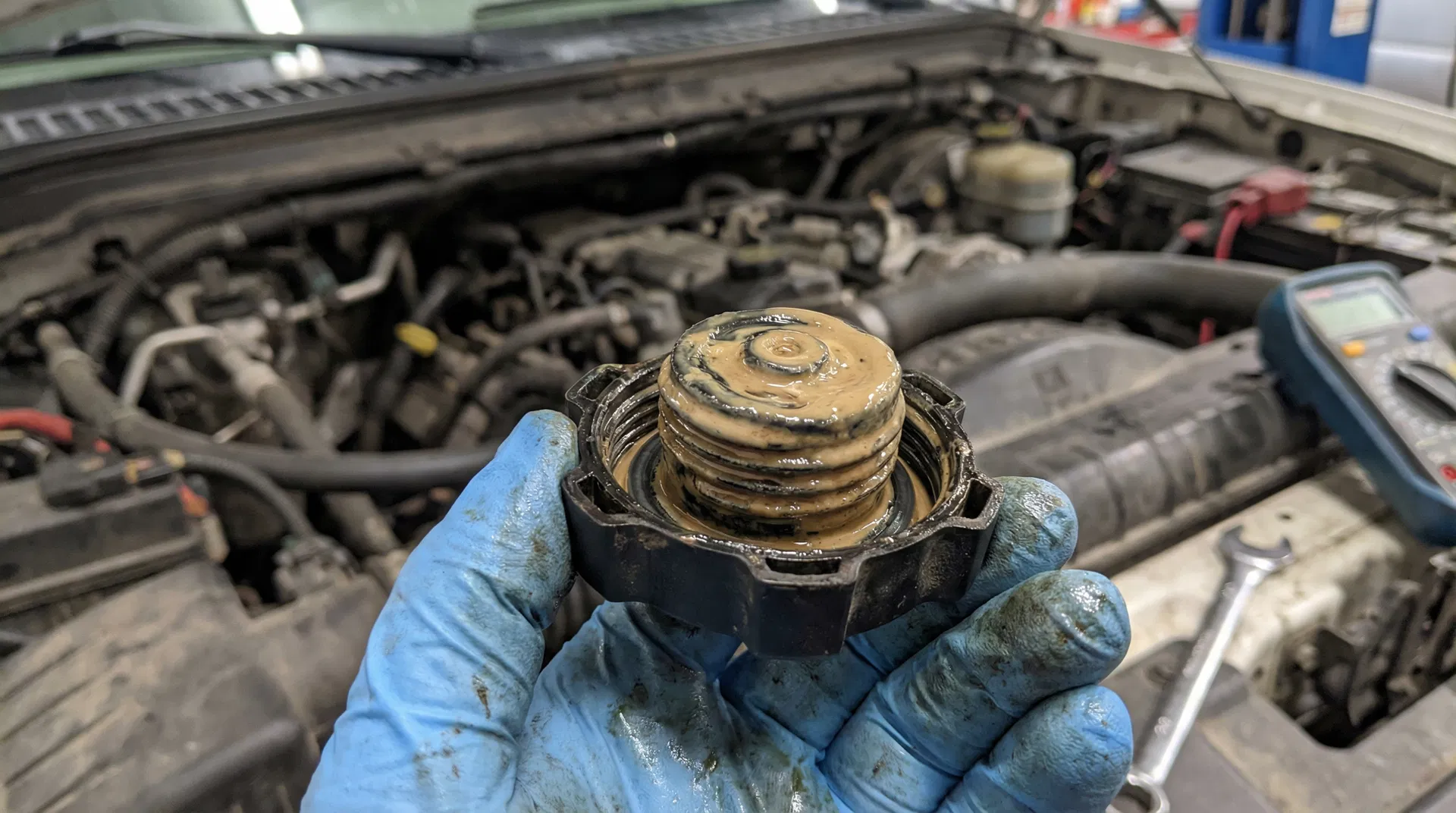

*Milky sludge on a coolant cap — the unmistakable sign of oil-coolant cross-contamination from a failed oil cooler.*

4. Engine Overheating Under Load

A failing oil cooler may develop blocked internal passages from sludge buildup or corrosion debris, reducing its heat transfer capacity. The result is oil temperatures climbing above 250°F under sustained load — particularly noticeable during long uphill grades or heavy hauling. If your Volvo D13 runs hot only under load but cools down at idle, a partially blocked oil cooler should be high on the suspect list.

5. Oil Pressure Fluctuation or Drop

When oil cooler passages become restricted, oil flow through the cooler decreases. This can manifest as oil pressure readings that fluctuate at idle or drop below normal operating range (typically 30–50 PSI at operating temperature for the D13). A sudden oil pressure warning on a high-mileage D13 should always prompt an oil cooler inspection before assuming the oil pump is at fault.

6. White Exhaust Smoke with Sweet Odor

In advanced cases where significant coolant has entered the oil circuit and subsequently reached the combustion chambers, you may observe white exhaust smoke with a distinctly sweet antifreeze smell. However, this symptom is more commonly associated with head gasket failure than oil cooler failure. If white smoke is your primary symptom, read the differential diagnosis section below before ordering an oil cooler.

---

Oil Cooler Failure vs. Head Gasket Failure: How to Tell the Difference

This is the single most important diagnostic distinction for any Volvo D13 showing signs of oil-coolant mixing. Misdiagnosing a $1,500 oil cooler replacement as a $6,000–$8,000 head gasket job — or vice versa — is an expensive mistake that happens more often than it should.

The key differentiator is engine performance. A failed oil cooler is a heat exchanger problem that does not affect combustion. A blown head gasket is a sealing failure that directly impacts cylinder compression and combustion gas containment.

The most reliable field test is a combustion gas leak test (also called a block test or chemical test). This test uses a chemical reagent that changes color when exposed to combustion gases in the coolant. If the test is negative — meaning no combustion gases are present in the cooling system — the oil cooler is almost certainly the source of contamination. If the test is positive, the head gasket requires immediate attention.

---

Step-by-Step Diagnostic Procedure

When a Volvo D13 presents with suspected oil-coolant mixing, follow this systematic diagnostic sequence to isolate the root cause.

Step 1: Visual Inspection. Check the oil dipstick, valve cover filler cap, and coolant degas bottle for signs of cross-contamination. Document the color and consistency of both fluids.

Step 2: Cooling System Pressure Test. Pressurize the cooling system to 15 PSI and monitor for pressure loss over 30 minutes. If pressure drops with no visible external leaks, the leak is internal — either the oil cooler or the head gasket.

Step 3: Combustion Gas Leak Test. With the engine running at operating temperature, use a block tester to check for combustion gases in the coolant. A negative result effectively rules out the head gasket and points to the oil cooler.

Step 4: Oil Analysis. Send an oil sample to a lab for coolant contamination testing. Labs can detect glycol (the active ingredient in coolant) at concentrations as low as 100 ppm — far below what is visible on a dipstick. This test costs $25–$40 and provides definitive confirmation of coolant intrusion.

Step 5: Oil Cooler Bench Test. If all evidence points to the oil cooler, remove it and perform a bench pressure test. Submerge the cooler in water, pressurize it to 40 PSI with compressed air, and watch for bubbles. Any bubbles confirm an internal breach.

---

When to Replace: The Decision Framework

Not every oil cooler symptom requires immediate replacement. Use this framework to determine the appropriate response.

Replace immediately if oil analysis confirms coolant contamination above 500 ppm, if milky oil is visible on the dipstick, or if the coolant reservoir shows heavy oil sludge. Continued operation with contaminated oil will destroy bearings, camshafts, and turbocharger journals within 500–2,000 miles.

Schedule replacement within 30 days if oil analysis shows trace glycol (100–500 ppm) but no visible symptoms. The leak is small but will worsen. Use this window to source parts and schedule downtime.

Monitor and retest if the only symptom is minor coolant loss (less than 1 quart per 10,000 miles) with clean oil analysis results. Retest at the next oil change interval. The coolant loss may be from a different source — water pump weep hole, hose clamp, or degas bottle cap.

---

Replacement Cost and OE Number Reference

Volvo D13 oil cooler replacement typically costs between $1,300 and $2,700 total, depending on whether OEM or aftermarket parts are used and the shop's labor rate. Parts alone range from $600 to $1,200, with labor running $700 to $1,500 (approximately 8–16 hours depending on accessibility and whether additional components must be removed).

The following table lists the primary OE numbers for Volvo D-series oil coolers. Cross-referencing your engine's OE number ensures you receive the correct replacement part.

All SUMEC oil coolers are manufactured from aluminum alloy with OEM-grade specifications, and each unit ships with new O-rings and gaskets included.

---

Preventive Maintenance: Extending Oil Cooler Life

The single most effective way to prevent premature oil cooler failure is maintaining coolant quality. Volvo specifies a coolant change interval of every 300,000 miles or 4 years for VCS (Volvo Coolant System) coolant. Using non-approved coolant or extending change intervals beyond the recommended schedule accelerates internal corrosion — the primary cause of oil cooler seal degradation.

Additional preventive measures include performing oil analysis at every oil change interval (typically every 35,000–50,000 miles) to catch early signs of coolant intrusion, inspecting the coolant degas bottle for oil contamination during pre-trip inspections, and replacing the oil cooler proactively at major overhaul intervals (typically 750,000–1,000,000 miles) rather than waiting for failure.

Related reading: [EGR Cooler Failure Symptoms: A Diagnostic Guide by Engine Platform](/knowledge-base/egr-cooler-failure-symptoms-diagnostic-guide) — if your Volvo D13 is also showing EGR-related fault codes, this guide covers the diagnostic overlap between EGR cooler and oil cooler failures.

---

Frequently Asked Questions

Can you drive with a bad oil cooler on a Volvo D13?

Driving with a confirmed oil cooler leak is strongly discouraged. Even a small amount of coolant in the engine oil compromises lubrication and accelerates bearing wear. If the leak is minor (trace glycol on oil analysis, no visible symptoms), you may have a narrow window to reach a repair facility — but continued operation beyond a few hundred miles risks catastrophic engine damage.

How long does a Volvo D13 oil cooler last?

Most Volvo D13 oil coolers last between 400,000 and 800,000 miles before internal seals begin to degrade. Trucks operating in severe-duty applications (frequent stop-and-go, extreme temperatures, or heavy loads) may see shorter service life. Proper coolant maintenance is the single biggest factor in extending oil cooler longevity.

What causes milky oil in a Volvo truck?

Milky oil in a Volvo truck is caused by coolant mixing with engine oil. The two most common sources are a failed oil cooler (more common, less expensive to repair) and a blown head gasket (less common, significantly more expensive). A combustion gas leak test is the fastest way to determine which component has failed.

How much does it cost to replace a Volvo D13 oil cooler?

Total replacement cost ranges from $1,300 to $2,700, including $600–$1,200 for the part and $700–$1,500 for labor. The wide range reflects differences between OEM and aftermarket parts pricing, as well as regional labor rate variations. The job typically requires 8–16 hours of shop time.

Is a Volvo D13 oil cooler failure covered under warranty?

Volvo's base engine warranty covers the oil cooler for 2 years or 250,000 miles, whichever comes first. Extended warranty coverage varies by plan. If your truck is outside warranty, aftermarket oil coolers from manufacturers like SUMEC offer OEM-grade quality at a lower price point, with a 1-year product warranty included.
